Gravity conveyor packages

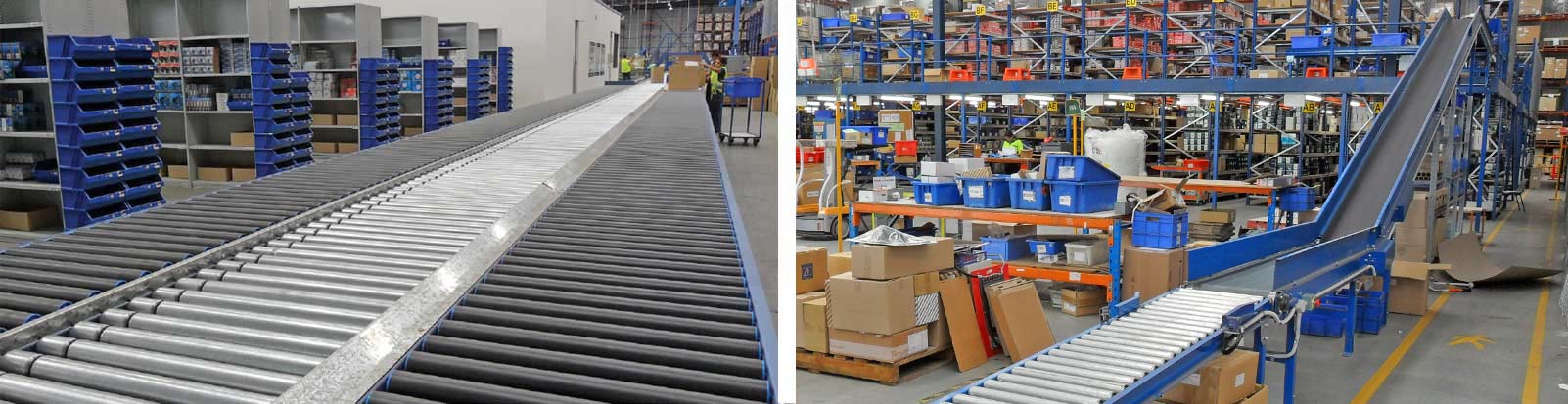

Gravity conveyor packages - application

Features across the range

Frames

  • Frames are all laser cut (matched) C-channels with fully-welded cross braces.

  • Butting plates on ends are integral and folded as part of the laser process.

  • Frames have laser cut holes in the bottom of the channels to allow for supports to be mounted in three positions (each end and at mid-span on the 3 m frames) and two positions (each end) on a 1.5 m frame.

  • Hammertone Regal Blue painted finish.

Supports

  • RHS construction, with height adjustable from 600-900 mm (1000 mm to top of roller when full extended).

  • Can be bolted to floor and conveyor system for added stability.

Rollers

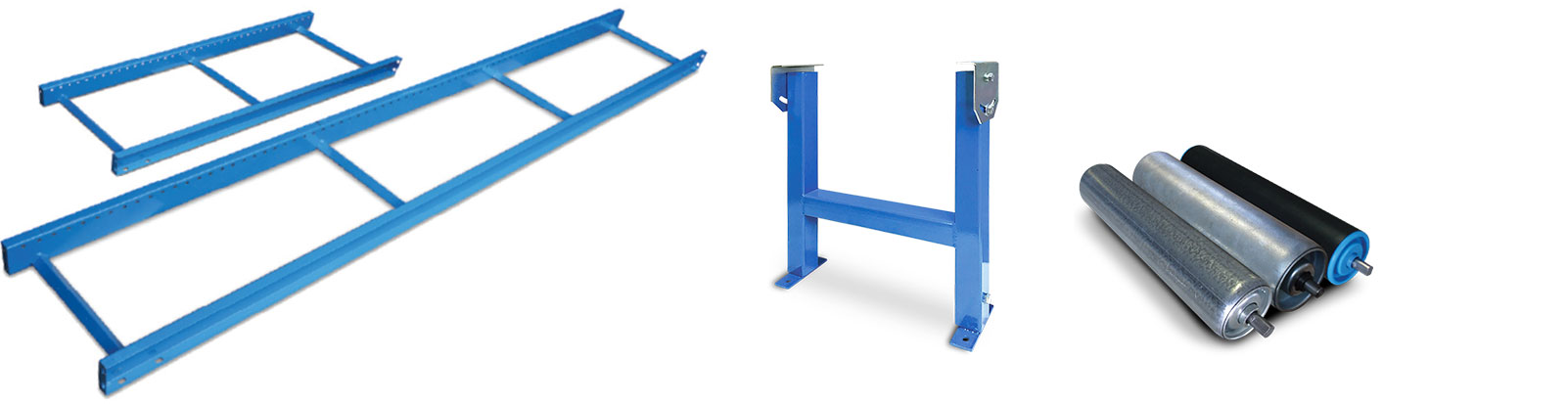

Galvanized steel tube rollers, round shaft with a 15 mm shaft protrusion each end of roller, 'D' one end, unground steel bearings. Gravity conveyor packages - parts


Medium heavy duty gravity conveyor packages

Roller dimensions

  • 50 mm diameter x 1.6 mm wall.

  • 3/8" diameter spring loaded mild steel.

Load
capacity
(kg)

Overall
frame
width (mm)

Inside
frame
width
(mm)

Frame
length (mm)

Frame

Rollers

Roller pitch

Supports

Order code

150

305

242

3000

1

38

79

2

CP3X305-79

150

460

394

3000

1

38

79

2

CP3X460-79

150

610

546

3000

1

38

79

2

CP3X610-79

200

305

242

3000

1

38

79

3

CP3X305-79/3

200

460

394

3000

1

38

79

3

CP3X460-79/3

200

610

546

3000

1

38

79

3

CP3X610-79/3

150

305

242

3000

1

19

115

2

CP3X305-115

150

460

394

3000

1

19

115

2

CP3X460-115

150

610

546

3000

1

19

115

2

CP3X610-115

200

305

242

3000

1

19

115

3

CP3X305-115/3

200

460

394

3000

1

19

115

3

CP3X460-115/3

200

610

546

3000

1

19

115

3

CP3X610-115/3


Heavy duty gravity conveyor packages

Roller dimensions

  • 50 mm diameter x 2 mm wall.

  • 12 mm diameter spring loaded mild steel.

Load
capacity
(kg)

Overall
frame
width (mm)

Inside
frame
width (mm)

Frame
length
(mm)

Frame

Rollers

Roller pitch

Supports

Order code

250

305

242

3000

1

38

79

2

CP3X305HD-79

250

460

394

3000

1

38

79

2

CP3X460HD-79

250

610

546

3000

1

38

79

2

CP3X610HD-79

300

305

242

3000

1

38

79

3

CP3X305HD-79/3

300

460

394

3000

1

38

79

3

CP3X460HD-79/3

300

610

546

3000

1

38

79

3

CP3X610HD-79/3

250

305

242

3000

1

19

115

2

CP3X305HD-115

250

460

394

3000

1

19

115

2

CP3X460HD-115

250

610

546

3000

1

19

115

2

CP3X610HD-115

300

305

242

3000

1

19

115

3

CP3X305HD-115/3

300

460

394

3000

1

19

115

3

CP3X460HD-115/3

300

610

546

3000

1

19

115

3

CP3X610HD-115/3

How to choose the right conveyor for your application

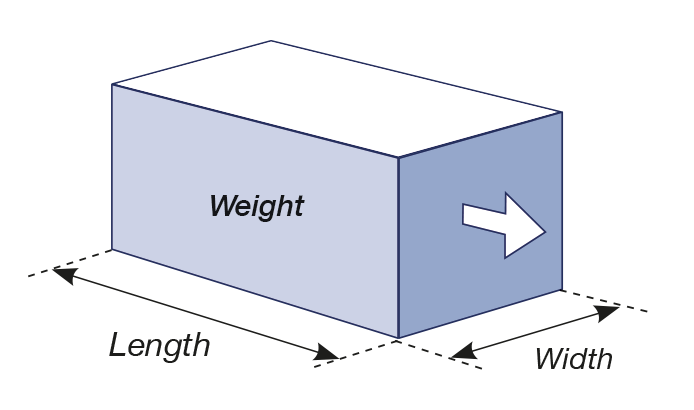

1. Item size

Measure the dimensions (length x width) and weight of the largest and smallest items to be carried on the conveyor, to ensure there are three rollers under the item at all times for stability.

Conveyor item size

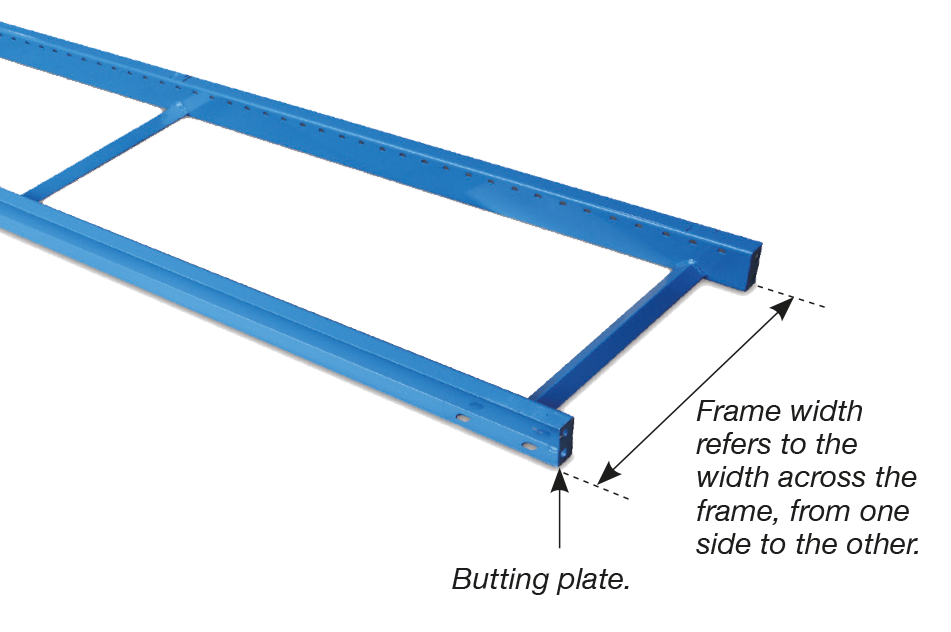

2. Frame width and length

Choose the frame width closest to the width of the items being conveyed. The rollers sit 10 mm above the roller frame. Overhang should be minimal.

Choosing conveyor frame sizes

3. Rollers

The product being conveyed determines which rollers are best for your application.

Medium heavy duty steel rollers are generally used for the conveying of heavy boxes and lengths of steel, whereas polypropylene rollers are more suitable for lightweight boxes and items you don't want marked, such as aluminium.

Choosing conveyor rollers

4. Supports

The conveyor supports are RHS steel construction, height adjustable from 600 to 900 mm (1000 mm to top of roller when fully extended) and have a Hammertone Regal Blue painted finish.

Supports can be bolted to the floor and to the conveyor system for added stability. Support can also be ordered with capped ends with a single hole to allow castors to be fitted.

Choosing conveyor support stands
