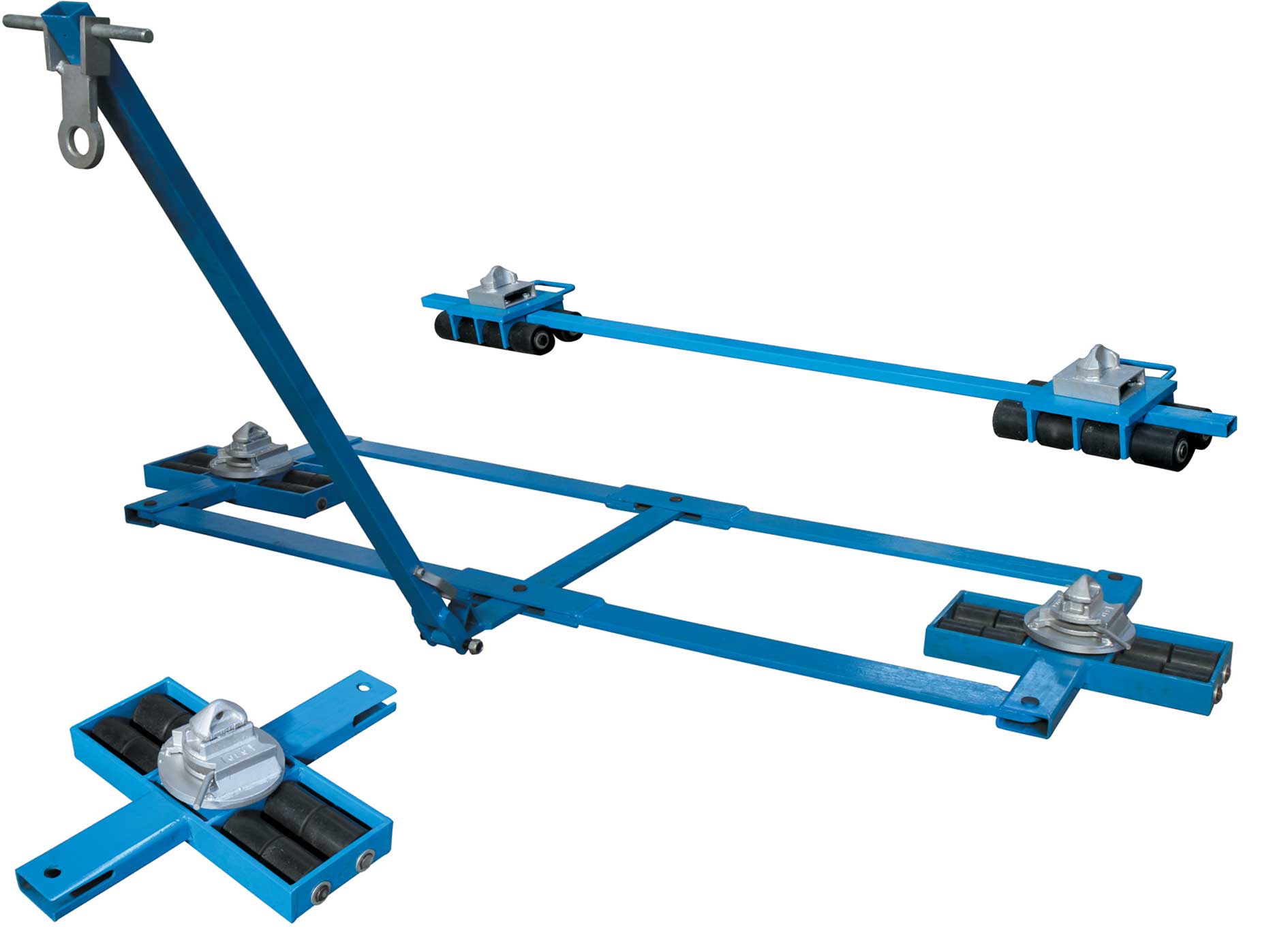

Container skates—20T capacity

Move shipping containers with ease

drum handling

Twist lock system—Assembly kit

Engineered for precision and strength, this 20-tonne rated load skate set safely moves large shipping containers and heavy equipment.

Designed to distribute weight evenly and reduce floor damage, this complete set offers outstanding manoeuvrability, even under extreme loads.

Features

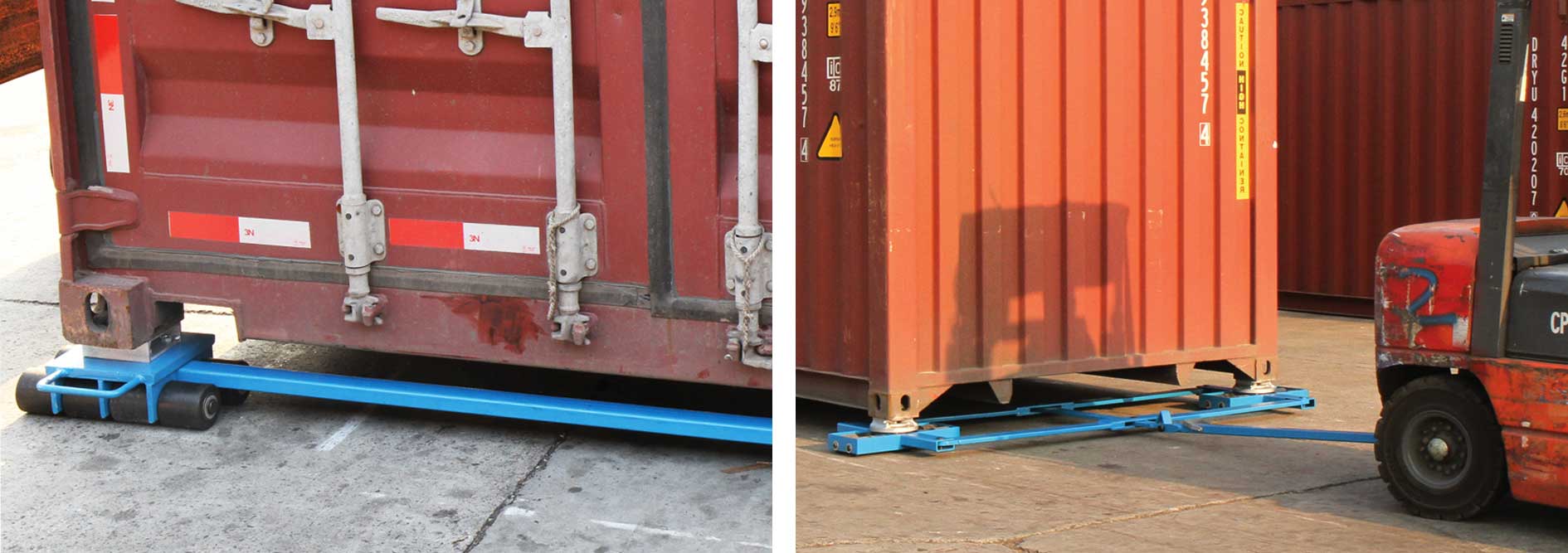

  • Container skates are easy and convenient to use, they can manoeuvre a container into a position where a forklift can't go.

  • Container skates are ideal for ISO container transport.

  • The double roller design results in easy steering due to reduced friction forces.

  • 20,000 kg capacity for full-load operations.

  • Low-profile design for stable, low-clearance applications.

  • Swivel and fixed skates included for controlled directional movement.

  • Durable steel construction ensures long-term reliability in tough environments.

Applications

Ideal for warehouses, logistics, factories, and equipment relocation.



Specifications

Product code

CS32SET

Deck height

155 mm

Handle rotation angle

Can be turned to a maximum of 45 degrees left or right.

Turning circle radius

20 ft container: Radius of turning circle is 6 m.

40 ft container: Radius of turning circle is 10 m.

Castor dimension

85 x 90 mm

Overall dimension front/steering (L/W/H)

2850 x 1030 x 160 mm

Overall dimension rear (L/W/H)

2500 x 300 x 160 mm

Front/steering rod length

2260 mm

Rear cassette dimension

800 x 57 mm

Weight

230 kg (overall weight)

Parts weight:

  • Front: 160 kg.

  • Rear: 70 kg.

Capacity

Up to 20 tonne
