Discounted tube ends and cap ends
Tube end cap fittings
Rectangular end caps
Suitable for use on chairs, furniture and appliances.
Made from polyethylene (PE).
Square end caps
Suitable for use on chairs, furniture and appliances.
Made from polyethylene (PE).
Order code |
Tube outer size x wall thickness (mm) |
Shank length |
Head thickness |
Price (ex. GST) |
|---|---|---|---|---|
SQiR-5901 |
25 x 25 tube x 1–3 mm wall thickness |
11.5 |
5.0 |
$0.15 |
SQiR-5904 |
30 x 30 tube x 1–2.5 mm wall thickness |
11.5 |
5.0 |
$0.20 |
SQiR-5906 |
32 x 32 tube x 1–3.5 mm wall thickness |
11.5 |
5.0 |
$0.30 |
SQiR-5903 |
35 x 35 tube x 1–3 mm wall thickness |
14.5 |
5.0 |
$0.35 |
SQiR-5916 |
50.8 x 50.8 tube x 2–3.2 mm wall thickness |
20.5 |
7.0 |
$0.35 |
SQiR-5919 |
75 x 75 tube x 2–4.5 mm wall thickness |
21.0 |
6.0 |
$0.60 |
SQiR-5927 |
100 x 100 tube x 1–4 mm wall thickness |
24.0 |
7.0 |
$0.80 |
Round end caps
Suitable for use on chairs, furniture and appliances.
Made from nylon with a mild steel zinc plated (ZP) thread, housing profile type 'G' expander and maximum static load 300mm.
Order code |
Tube outer diameter (OD) x wall thickness (mm) |
Shank length |
Head thickness |
Price (ex. GST) |
|---|---|---|---|---|
RTRi-5506 |
25 x 1–3 mm |
11.5 |
5.0 |
$0.15 |
RTRi-5509 |
30 x 0.8–2.5 mm |
11.5 |
5.0 |
$0.20 |
RTRi-5508 |
32 x 0.8–2.5 mm |
11.5 |
5.0 |
$0.25 |
RTRi-5578 |
33.7 x 2.6–4 mm |
15.0 |
5.5 |
$0.35 |
RTRi-5507 |
38 x 1–2 mm |
11.5 |
5.0 |
$0.30 |
RTRi-5580 |
42.4 x 2.6–4 mm |
17.5 |
7.5 |
$0.40 |
RTRi-5515 |
50 x 1–2.5 mm |
11.5 |
5.0 |
$0.50 |
RTRi-5516 |
50.8 x 1–2 mm |
11.5 |
5.0 |
$0.50 |
RTRi-5584 |
60.3 x 3.2–5 mm |
20.5 |
10.0 |
$0.55 |
RTRi-5586 |
76.1 x 3.2–5 mm |
22.0 |
13.0 |
$0.80 |

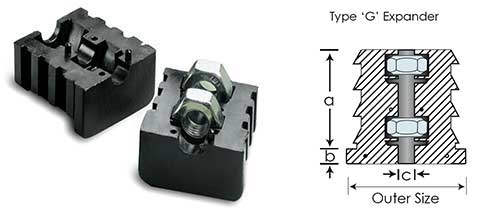

Square threaded tube ends
Made from nylon with a mild steel zinc plated (ZP) thread, housing profile type 'G' expander and maximum static load 300mm.
Suitable for feet or castors.
Order code |
Tube outer size x wall thickness (mm) |
Shank length |
Head thickness |
Thread size |
Thread stop |
Price (ex. GST) |
|---|---|---|---|---|---|---|
SETi-5801 |
25 x 25 tube x 1.6 mm wall thickness |
36 |
5.0 |
M10 |
38 |
$2.20 |
SETi-5811 |
35 x 35 tube x 1.6 mm wall thickness |
36 |
5.0 |
M10 |
38 |
$2.20 |
SETi-5813 |
38.1 x 38.1 tube x 1.6 mm wall thickness |
36 |
5.0 |
M10 |
38 |
$2.20 |
SETi-5795 |
50 x 50 tube x 1.6 mm wall thickness |
36 |
5.0 |
M10 |
38 |
$2.20 |
SETi-5786 |
50 x 50 tube x 2 mm wall thickness |
36 |
5.0 |
M12 |
38 |
$2.20 |
SETi-5798 |
50 x 50 tube x 2.5–3 mm wall thickness |
36 |
5.0 |
M12 |
38 |
$2.20 |

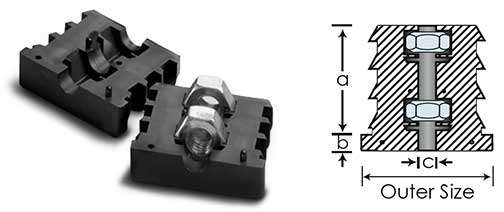

Rectangular threaded tube ends
Made from nylon, housing profile type 'G' expander and maximum static load 300mm.
Suitable for feet or castors.
Order code |
Tube outer size x wall thickness (mm) |
Shank length |
Head thickness |
Thread size |
Thread stop |
Thread material |
Price (ex. GST) |
|---|---|---|---|---|---|---|---|
RETi-5862 |
50 x 25 tube x 1.6 mm wall thickness |
38 |
5.0 |
M10 |
38 |
Mild steel zinc plated (ZP) |
$2.20 |
RETi-5878 |
50 x 25 tube x 1.6 mm wall thickness |
38 |
5.0 |
M10 |
38 |
Stainless steel |
$2.20 |
RETi-5819 |
50 x 25 tube x 2.0 mm wall thickness |
32 |
5.0 |
M10 |
33 |
Mild steel zinc plated (ZP) |
$2.20 |
RETi-5780 |
50 x 25 tube x 1.6 mm wall thickness |
38 |
5.0 |
M12 |
38 |
Mild steel zinc plated (ZP) |
$2.20 |

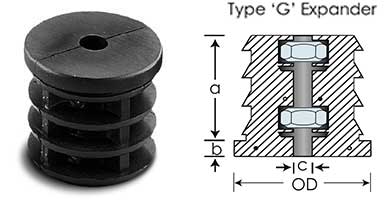

Round threaded tube ends
Made from nylon with a mild steel zinc plated (ZP) thread, housing profile type 'G' expander and maximum static load 300mm.
Suitable for feet or castors.
Order code |
Tube outer diameter (OD) x wall thickness (mm) |
Shank length |
Head thickness |
Thread size |
Thread stop |
Price (ex. GST) |
|---|---|---|---|---|---|---|
RETi-5825 |
20 x 1.6 mm |
36 |
5.0 |
M8 |
38 |
$2.20 |
RETi-5827 |
22 x 1.6 mm |
36 |
5.0 |
M8 |
38 |
$2.20 |
RETi-5826 |
30 x 1.6 mm |
36 |
5.0 |
M10 |
38 |
$2.20 |
RETi-5892 |
32 x 1.6 mm |
35 |
5.0 |
M8 |
35 |
$2.20 |
RETi-5873 |
50 x 1.6 mm |
32 |
5.0 |
M10 |
37 |
$2.20 |
RETi-5875 |
50 x 2.0 mm |
32 |
5.0 |
M10 |
37 |
$2.20 |
RETi-5874 |
50 x 1.6 mm |
32 |
5.0 |
M12 |
37 |
$2.20 |
RETi-5838 |
60 x 2.0 mm |
35 |
3.0 |
M10 |
33 |
$2.20 |
