Industrial bin lifters & wheelie bin tippers



Liftmaster bin lifters



Liftmaster bin lifter range

Hydraulic and powered wheelie bin lifters

Australian-made Liftmaster wheelie bin lifters are ideal for improving waste management in the workplace. Adaptable with a range of wheelie bin sizes, Liftmaster bin lifters can lift between 50 to 250 kg load capacities.

Various styles are available for schools, businesses, retail outlets, construction zones, hospitality, hospitals, warehouses or industrial environments.


Full-swing bin lifters

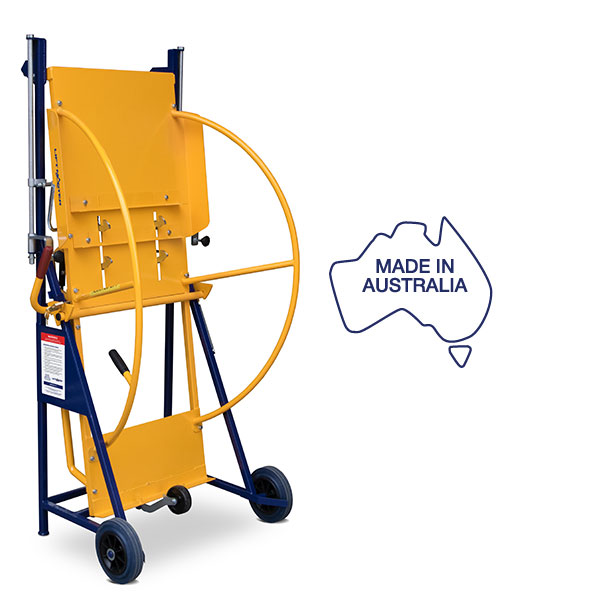

Niftylift bin lifter

Niftylift bin lifter

For bins weighing no more than 30 kg, tipping around two times per day.  Typically used for homes and small offices.

Read more

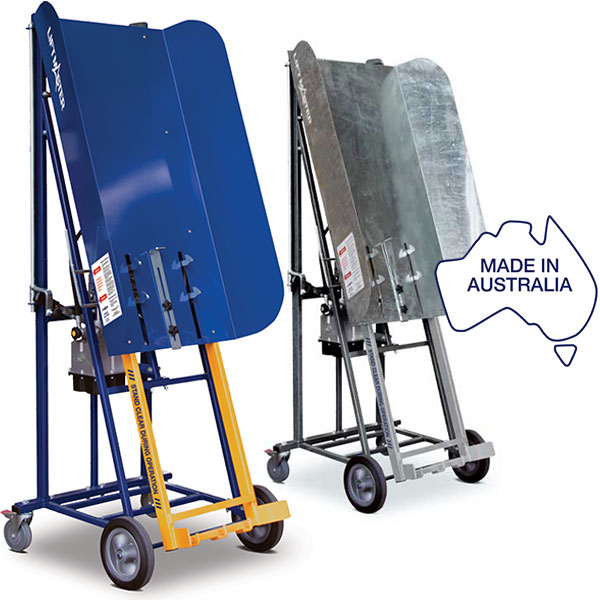

Rugged manual bin lifter

Rugged (manual) bin lifter

For bins weighing between 50–100 kg, tipping around ten times per day. Typically for construction sites, industrial and commercial work sites.

Read more

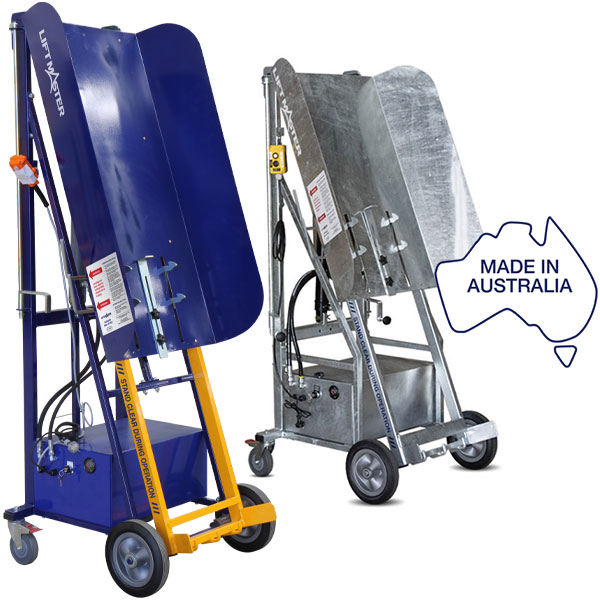

Rugged powered bin lifter

Rugged (powered) bin lifter

For bins weighing between 50–100 kg, tipping around ten times per day.  Typically for construction sites, hotels and apartment complexes.

Read more


Lift-and-tilt bin lifters

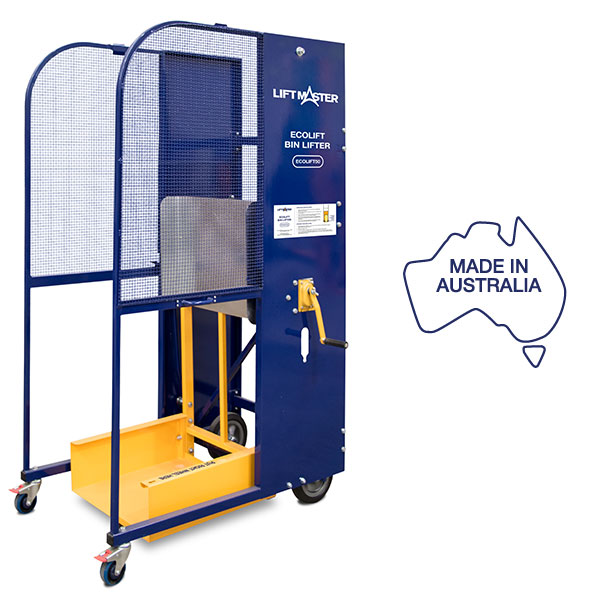

Ecolift bin lifter

Ecolift bin lifter

For bins weighing between 30–50 kg, tipping around six times per day.  Typically for schools, restaurants, shops and small businesses.

Read more

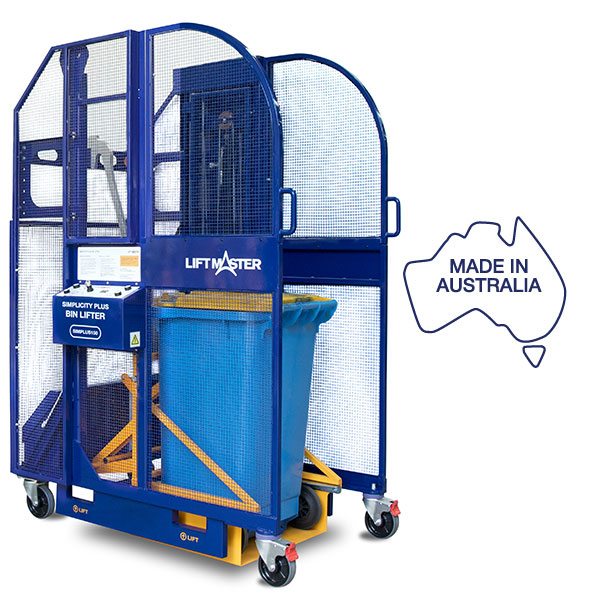

Simplicity Plus bin lifter

Simplicity Plus bin lifter

For bins weighing between 100–150 kg, tipping frequently.  Typically for functions, event centres, schools, fesitvals and worksites.

Read more

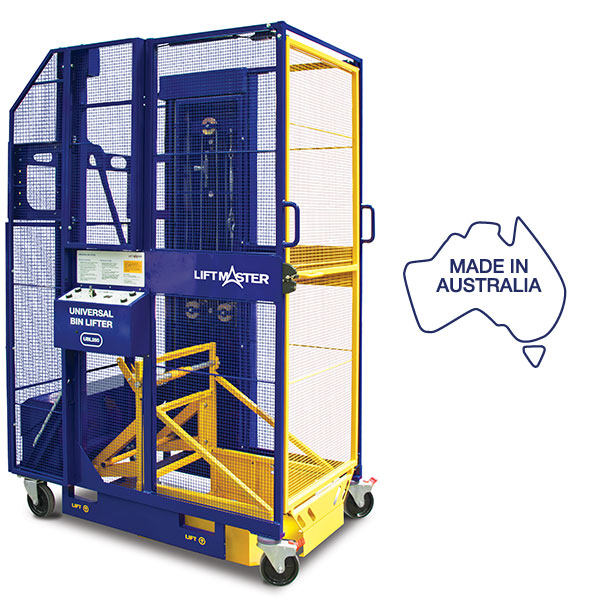

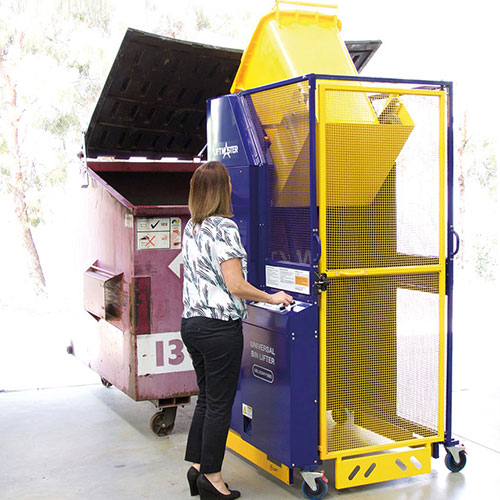

Universal bin lifter

Universal bin lifter

For bins weighing between 150–250 kg, tipping frequently.  Typically for supermarkets, caravan parks, schools and large factories or warehouses.

Read more




Wheelie bin tipper forklift attachments

Single wheelie bin tipper

 bin lifter



Order code: CINWB-T1P

The type CINWB-T1P Wheelie Bin Tipper has been designed for emptying a standard 240 litre plastic bin. The bin is wheeled into the cradle and secured by the safety chain attached to the backrest allowing the bin to be lifted/transported about the workplace and emptied. The tipping operation is simple and safe with the operator never having to leave his seat.
Standard finish on all Wheelie Bin Tippers is zinc

Specifications

Safe working load (SWL):

500 kg

Load centre:

1200 mm

Unit weight:

100 kg

Pocket size:

165 x 65

Pocket centres:

340 mm

Rotation:

Capable of 180°

Horizontal C of G:

720 mm

Vertical C of G:

90 mm

Shipping dimensions (L/W/H):

1200/700/710 mm x 100 kg

single wheelie bin tipper

Double wheelie bin tipper

double wheelie bin tipper



Order code: CINWB-T2P

The type CINWB-T2P Wheelie Bin Tipper has been designed for emptying one or two standard 240 litre plastic bins. The bins are wheeled into the cradle and secured by the safety chains attached to the backrests allowing the bins to be lifted/transported about the workplace and emptied. The tipping operation is simple and safe with the operator never having to leave his seat.
Standard finish on all Wheelie Bin Tippers is zinc.

SPECIFICATIONS

Safe working load (SWL):

1000 kg

Load centre:

1200 mm

Unit weight:

150 kg

Pocket size:

165 x 65

Pocket centres:

340 mm

Rotation:

Capable of 180°

Horizontal C of G:

720 mm

Vertical C of G:

90 mm

Shipping dimensions (L/W/H):

1200/1300/710 mm x 150 kg

wheelie bin tipper specs
