Extendable, flexible, mobile conveyor systems

Extendaflex conveyor systems

Features

  • A unique, flexible conveyor system that expands, contracts, twists and turns.

  • Designed to ensure self-tracking.

  • Quick setup, adjustable height support legs on lockable castors.

  • Painted and zinc plated finish.

flexible conveyor system

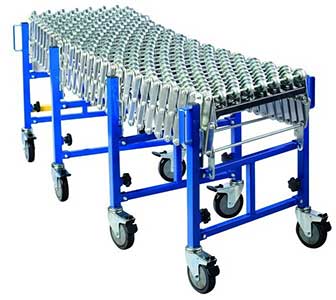

Flexible conveyor system (450 mm wide over skates)

Specifications

Order code:

CSES450

Load capacity:

100 kg per metre

Extended length:

3900 mm

Retracted length:

1000 mm

Width:

450 mm over skates

Skates:

50 mm diameter zinc plated

Castors:

125 mm diameter, non-marking, swivel/total brake

Height adjustment:

690 to 1000 mm (to top of skates)

Flexible conveyor system (600 mm wide over skates)

Specifications

Order code:

CSES600

Load capacity:

100 kg per metre

Extended length:

3900 mm

Retracted length:

1000 mm

Width:

600 mm over skates

Skates:

50 mm diameter zinc plated

Castors:

125 mm diameter, non-marking, swivel/total brake

Height adjustment:

690 to 1000 mm (to top of skates)


flexible conveyor system

Flexible conveyor system (450 mm wide over rollers)

Specifications

Order code:

CSER450

Load capacity:

130 kg per metre

Extended length:

3900 mm

Retracted length:

1450 mm

Width:

450 mm over rollers

Rollers:

50 mm diameter zinc plated

Castors:

125 mm diameter, non-marking, swivel/total brake

Height adjustment:

690 to 1000 mm (to top of roller)

Flexible conveyor system (600 mm wide over rollers)

Specifications

Order code:

CSER600

Load capacity:

130 kg per metre

Extended length:

3900 mm

Retracted length:

1450 mm

Width:

600 mm over rollers

Rollers:

50 mm diameter zinc plated

Castors:

125 mm diameter, non-marking, swivel/total brake

Height adjustment:

690 to 1000 mm (to top of roller)


Stand-alone materials handling extendable (Extendaflex) conveyor systems

A unique flexible conveyor that expands, contracts, twists and turns into an 'S' shape or circle. Quick set-up and adjustable height legs on lockable castors.  Skate wheels or polypropylene rollers designed to ensure self-tracking.

Extendaflex Conveyor
Extendaflex Conveyor

Features

  • Polyproyplene roller systems close down to 2400 mm and extend out to 7500 mm (rollers are at 150 mm pitch when fully extended)

  • Skate wheel systems close down to 1800 mm and extend out to 7500 mm (rollers are at 150 mm pitch when fully extended)

  • The adjustable supports offer a height range from 700 mm to 1000 mm (top of roller or skate wheel)

  • Supports are supplied with 125 mm diametre non marking rubber castors, brakes are supplied on alternate legs

  • All units are manufactured from zinc finished steel and are manufactured in Australia

  • Stainless steel units available

  • Joiner clips can be supplied so that two units can be connected together

  • Package end stops are available to stop product from falling off end of system.

350 Series (350 mm wide)

Economical expandable gravity conveyor for multi-sized packages in low to medium volume applications. Polypropylene roller or skate wheeled units available.  350 mm wide, 200 kg capacity.

Description

Shipping
weight
(kg)

Order
code

5 support legs, plastic skate wheels, extended length 7500 mm

79

ECS535P

7 support legs, plastic skate wheels, extended length 7500 mm

90

ECS735P

5 support legs, one polypropylene rollers on each run, extended length 7500 mm

86

ECR531P

5 support legs, two polypropylene rollers on each run, extended length 7500 mm

86

ECR532P

7 support legs, one polypropylene roller on each run, extended length 7500 mm

98

ECR731P

7 support legs, two polypropylene rollers on each run, extended length 7500 mm

101

ECR732P

5 support legs, steel skate wheels, extended length 7500 mm

98

ECS535S

7 support legs, steel skate wheels, extended length 7500 mm

98

ECS7352



Stainless steel construction 350 Series (350 mm wide)

Description

Shipping
weight
(kg)

Order
code

5 support legs, plastic skate wheels, extended length 7500 mm

79

ECS535PSS

7 support legs, plastic skate wheels, extended length 7500 mm

90

ECS735PSS

5 support legs, one polypropylene roller on each run, extended length 7500 mm

86

ECR531PSS

5 support legs, two polypropylene rollers on each run, extended length 7500 mm

86

ECR532PSS

7 support legs, two polypropylene rollers on each run, extended length 7500 mm

101

ECR732PSS



460 Series (460 mm wide)

General purpose gravity conveyor for medium volume applications in warehouse or storage. Polypropylene roller or skate wheeled units available.  460mm wide, 200Kg capacity.

Description

Shipping
weight
(kg)

Order
code

5 support legs, plastic skate wheels, extended length 7500 mm

101

ECS546P

7 support legs, plastic skate wheels, extended length 7500 mm

109

ECS746P

5 support legs, two polypropylene rollers on each run, extended length 7500 mm

113

ECR542P

7 support legs, two polypropylene rollers on each run, extended length 7500 mm

125

ECR742P

5 support legs, steel skate wheels, extended length 7500 mm

123

ECS546S

7 support legs, steel skate wheels, extended length 7500 mm

135

ECS746S

8 support legs, steel skate wheels, extended length 8800 mm

157

ECS846S



Stainless steel construction 460 Series (460 mm wide)

Description

Shipping
weight
(kg)

Order
code

5 support legs, plastic skate wheels, extended length 7500 mm

101

ECS546PSS

7 support legs, plastic skate wheels, extended length 7500 mm

109

ECS746PSS

5 support legs, two polypropylene rollers on each run, extended length 7500 mm

113

ECR542PSS

7 support legs, two polypropylene rollers on each run, extended length 7500 mm

125

ECR742PSS



610 Series (610 mm wide)

Flexible expandable conveyor for multi-sized material in high volume applications.  For truck loading and unloading. Polypropylene roller or skate wheeled units available.  610mm wide, 200Kg capacity.

Description

Shipping
weight
(kg)

Order
code

5 support legs, plastic skate wheels, extended length 7500 mm

108

ECS568P

7 support legs, plastic skate wheels, extended length 7500 mm

120

ECS768P

5 support legs, two polypropylene rollers on each run, extended length 7500 mm

123

ECR562P

7 support legs, two polypropylene rollers on each run, extended length 7500 mm

135

ECR762P

7 support legs, three polypropylene rollers one each run, extended length 7500 mm

138

ECR763P

5 support legs, steel skate wheels, extended length 7500 mm

138

ECS568S

7 support legs, steel skate wheels, extended length 7500 mm

151

ECS768S

8 support legs, steel skate wheels, extended length 8800 mm

175

ECS868S



Stainless steel construction 610 Series (610 mm wide)

Description

Shipping
weight
(kg)

Order
code

5 support legs, plastic skate wheels, extended length 7500 mm

138

ECS568PSS

7 support legs, plastic skate wheels, extended length 7500 mm

138

ECS768PSS

5 support legs, two polypropylene rollers on each run, extended length 7500 mm

151

ECR562PSS

7 support legs, two polypropylene rollers on each run, extended length 7500 mm

175

ECR762PSS
