Soft wheels

Grey rubber wheels

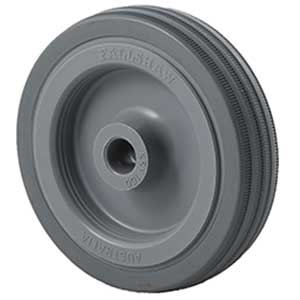

KSA

Grey rubber, flat profile, plain bearing.
Maximum load 50 kg.

Diameter x tread (mm)	Hub x bore (mm)	Order code
65 x 23	30 x 12	KSA65
75 x 23	30 x 12	KSA75
100 x 23	30 x 12	KSA100

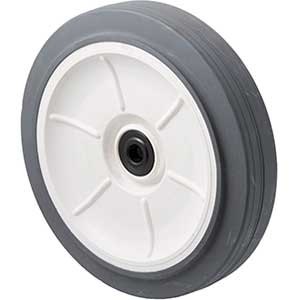

PSA

Grey rubber, non-marking, white polypropylene (PP) off set wheel, plain bearing. Also available to suit 5/8” bore (58).
Developed for floor polishers and scrubbers.
Maximum load 80 kg.

Diameter x tread (mm)	Hub x bore (mm)	Order code
200 x 32	38 x 12.7	PSA200
200 x 32	38 x 16	PSA200(58)

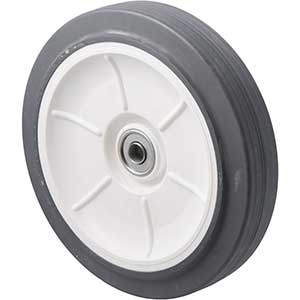

PSB

Grey rubber, non-marking, white polypropylene (PP) off set wheel, deep groove ball bearing.
Developed for floor polishers and scrubbers.
Maximum load 80 kg.

Diameter x tread (mm)	Hub x bore (mm)	Order code
200 x 32	38 x 12.7	PSB200

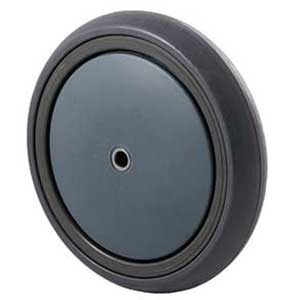

QTQ

Grey rubber, round profile, precision bearing, thread guard.
Maximum load 200 kg.

Diameter x tread (mm)	Hub x bore (mm)	Order code
150 x 34	40 x 8	QTQ150G
175 x 34	40 x 8	QTQ175G
200 x 34	40 x 8	QTQ200G

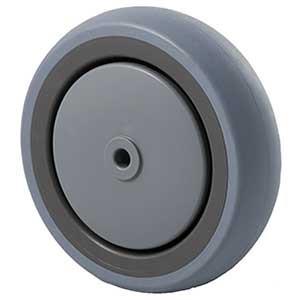

STQ

Grey rubber, precision bearing, thread guard.
Maximum load 100 kg.

Diameter x tread (mm)	Hub x bore (mm)	Order code
75 x 32	40 x 8	STQ75G
100 x 32	40 x 8	STQ100G
125 x 32	40 x 8	STQ125G

QTQ

Grey rubber, round profile, precision bearing, thread guard.
Maximum load 200 kg.

Diameter x tread (mm)	Hub x bore (mm)	Order code
150 x 34	40 x 8	QTQ150G
175 x 34	40 x 8	QTQ175G
200 x 34	40 x 8	QTQ200G

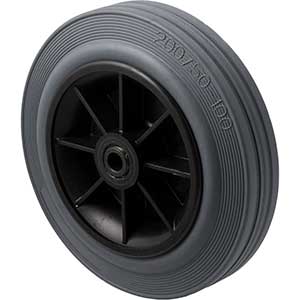

HSR

Grey rubber, roller bearing, optional thread guard.
Maximum load 250 kg.

Diameter x tread (mm)	Hub x bore (mm)	Order code
200 x 50	60 x 12.7	HSR200

Blue rubber wheels

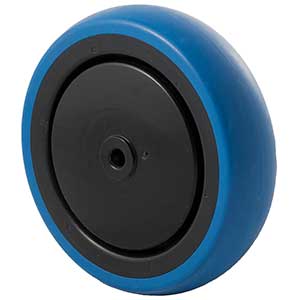

CBQ

Blue high resilience elastomer, precision bearing, thread guard.

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
85	75 x 33	40 x 8	CBQ75G
100	100 x 33	40 x 8	CBQ100G
100	125 x 23	40 x 8	CBQ125G

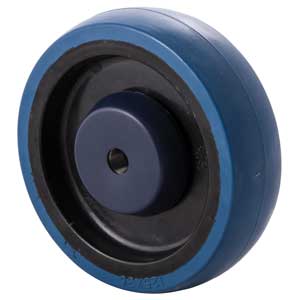

MBQ

Blue high resilience non-marking rubber, precision bearing, thread guard.

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
140	100 x 32	40 x 8	MBQ100G
150	125 x 32	40 x 8	MBQ125G

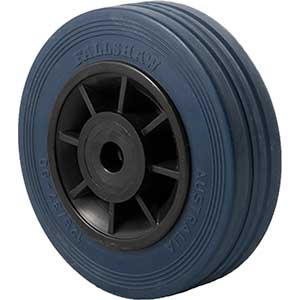

JBR

Blue high resilience non-marking elastomer, roller bearing, no thread guard.

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
150	100 x 32	45 x 10	JBR100
180	125 x 32	45 x 10	JBR125

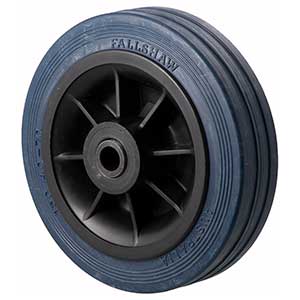

HBR

Blue high resilience non-marking elastomer, roller bearing, no thread guard.

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
230	150 x 40	60 x 12.7	HBR150
250	200 x 40	60 x 12.7	HBR200

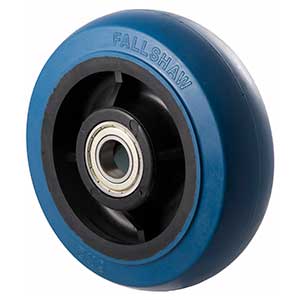

OBQ

Blue high resilience non-marking rubber, precision bearing, no thread guard.

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
300	100 x 50	60 x 12.7	OBQ100
350	125 x 50	60 x 12.7	OBQ125
400	150 x 50	60 x 12.7	OBQ150
400	200 x 50	60 x 12.7	OBQ200

Black rubber wheels

PRB

General purpose rubber utility wheel for lawn equipment and carts, deep groove ball bearing and off set centre.

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
50	125 x 36	38 x 13	PRB125
75	150 x 36	38 x 13	PRB150
100	200 x 36	38 x 13	PRB200

PRP250

General purpose rubber utility wheel, used on light lawn equipment and carts, plain bearing.

Optional hub cap available (order code: GHUBCAP).

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
100	250 x 45	48 x 16	PRP250

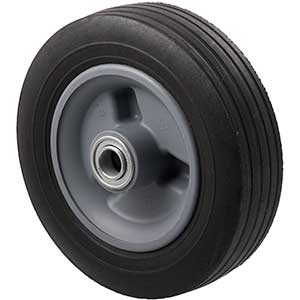

U200-60C

Medium duty hand truck wheels, deep groove ball bearing, high-impact polypropylene centre, 20 mm bore (-POYB20) or 3/4” bore (-POYB34).

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
135	200 x 60	60 x 20	U200/60C-POYB20
135	200 x 60	60 x 19	U200/60C-POYB34

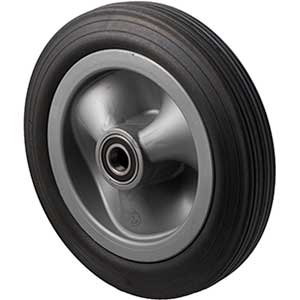

R250/50C

Puncture proof for wheelbarrows and utility equipment, precision ball bearing. Available in 20 mm bore (-PRYQ20) or 3/4” bore (-PRYQ34).

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
150	250 x 50	60 x 20	R250/50C-PRYQ20
150	250 x 50	60 x 19	R250/50C-PRYQ34

R300/50C

Puncture proof for wheelbarrows and utility equipment, precision ball bearing. Available in 20 mm bore (-PRYQ20) or 3/4” bore (-PRYQ34).

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
150	300 x 50	60 x 20	R300/50C-PRYQ20
150	300 x 50	60 x 19	R300/50C-PRYQ34

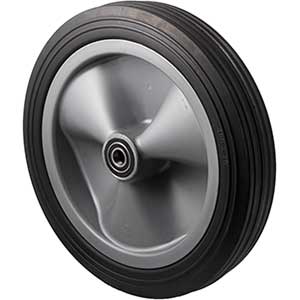

R400/70C

Puncture proof for wheelbarrows and utility equipment, precision ball bearing. Available in 20 mm bore (-PRYQ20), 3/4” bore (-PRYQ34), or 1” bore (PRYQ25).

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
150	400 x 70	80 x 20	R400/70C-PRYQ20
150	400 x 70	80 x 19	R400/70C-PRYQ34
150	400 x 70	80 x 25	R400/70C-PRYQ25

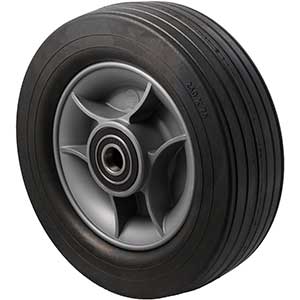

R250/75C

Puncture proof for wheelbarrows and utility equipment, precision ball bearing. Available in 20 mm bore (-PRWQ20), 25 mm bore (-PRWQ25), 3/4” bore (-PRWQ34), or 5/8” bore (-PRWQ58).

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
180	250 x 75	75 x 20	R250/75C-PRWQ20
180	250 x 75	75 x 25	R250/75C-PRWQ20
180	250 x 75	75 x 19	R250/75C-PRWQ20
180	250 x 75	75 x 16	R250/75C-PRWQ20

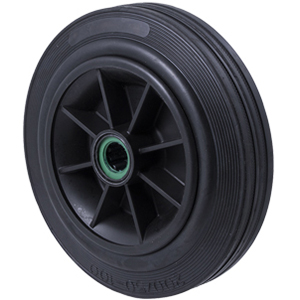

HRR200

Black rubber wheel with roller bearing, for trolleys, carts and lawn mowers. Thread guard available (HRR200G).

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
180	200 x 50	60 x 20	HRR200

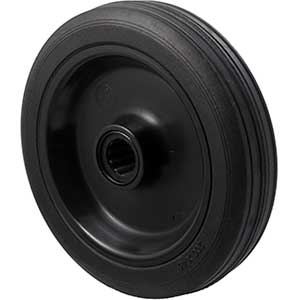

RB200L

Solid black rubber wheel, with roller bearing, for wheelbarrows, utility equipment and waste bins.

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
200	200 x 45	53 x 25.4	RB200L

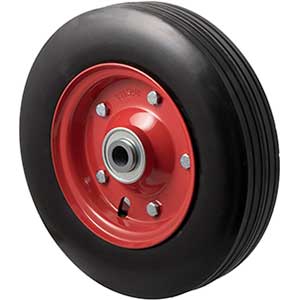

R280/70RC

Puncture proof solid cushioned wheel, with deep groove ball bearings in sizes 1” (-SRBB10), 20 mm (-SRBB20), 3/4” (-SRBB34), or 5/8” (-SRBB58).

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
200	280 x 70	60 x 25	R280/70R-SRBB10
200	280 x 70	60 x 20	R280/70R-SRBB20
200	280 x 70	60 x 19	R280/70R-SRBB34
200	280 x 70	60 x 16	R280/70R-SRBB58

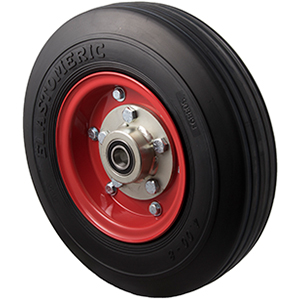

R400X8-SQ10

Heavy duty wheel, designed for towing, precision ball bearing. Max tow speed—15 km/h.

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
600	400 x 95	80 x 25	R280/70R-SRBB10

Conductive wheels

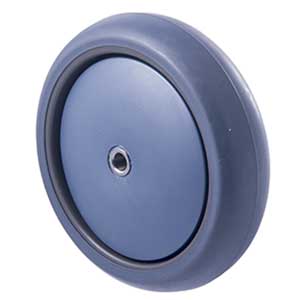

MAQ

Conductive TPE, precision bearing, thread guard. Available with stainless steel bearing (MAC).

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
85	75 x 32	40 x 8	MAQ75G
85	100 x 32	40 x 8	MAQ100G
85	125 x 32	40 x 8	MAQ125G
