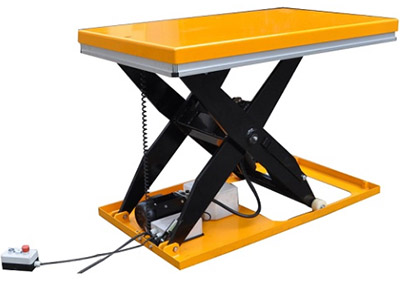

Powered lift table—Single scissor lift

500—3000 kg capacity

Single scissor lift table. Lift up to 3000 kg

Load capacity

500–3000 kg

Platform size

1300 x 800 mm

Height range

190-1020 mm

Features and options

  • Our lift table range can be used in above-floor or in-floor pit applications.

  • The upper platform is fitted with an aluminium safety bar which prevents descent on contact with obstructions.

  • Easy-to-use button-operated.

  • Low-tension (24V) control box with up-down buttons.

  • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

  • Heavy duty cylinders with drainage system and check valve to stop the table lowering in case of a hose bursting.

  • Removable eyelets for lifting.

  • Made to order, with a lead time between 6–8 weeks.

  • Power source: 240V single phase or 415V 3 phase.

Order code: LT500IM LT1000IM LT2000IM LT3000IM

Capacity (kg)

500

1000

2000

3000

Lowered height (mm)

190

190

190

220

Raised height (mm)

1010

1010

1010

1020

Platform size LxW (mm)

1300 x 800

1300 x 800

1300 x 800

1300 x 800

Lifting time (seconds)

15

25

40

26

Lifting speed with load (seconds)

55

40

22

30

Lowering speed with load (seconds)

40

35

33

40

Motor (kW)

0.75

0.75

0.75

1.5

Net weight (kg)

160

220

280

320
