1000kg Hydraulic Double Scissor Lift Table—1500mm Lift Height

1.5m Lift Height

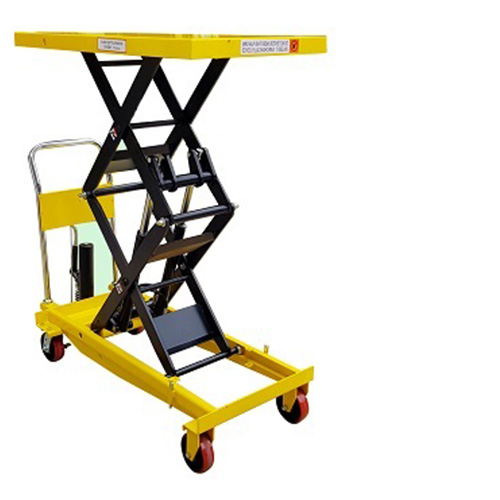

The SLM1000H Hydraulic Double Scissor Lift Table is a heavy-duty manual lifting solution designed for handling large, bulky and awkwardly shaped loads in industrial environments. With a 1000kg load capacity and a maximum lift height of 1500mm, it provides an elevated working platform for warehouses, manufacturing facilities, workshops and production lines.

Featuring a large 1200 × 610mm platform, the SLM1000H offers additional space and support for oversized items. Its double scissor mechanism enables greater lifting height than a conventional single scissor lift table, making it suitable for applications requiring loads to be raised to higher working positions.

The foot-operated hydraulic pump allows operators to raise loads with reduced physical effort, while the hand-operated release lever provides controlled lowering. Lockable swivel polyurethane castors support manoeuvrability across the workplace, and the rear braking system helps secure the unit during loading and unloading.

Built for demanding material handling applications, the SLM1000H combines a robust steel construction with practical safety features to support efficient and ergonomic workplace operations.

Features

• 1000kg load capacity—designed for heavy-duty industrial lifting and positioning.

• 1500mm maximum lift height—provides an elevated working platform for higher-level handling tasks.

• Double scissor lifting mechanism—achieves an extended lift height compared with standard single scissor designs.

• Large 1200 × 610mm platform—accommodates bulky, oversized and irregularly shaped loads.

• Foot-operated hydraulic pump—enables manual lifting with reduced bending and physical effort.

• Controlled lowering—hand-operated release lever allows the platform to descend in a controlled manner.

• Overload bypass valve—helps protect the hydraulic system from overloading.

• Lockable swivel polyurethane castors—support manoeuvrability and help protect delicate floor surfaces.

• Rear braking system—helps keep the lift table stationary during operation.

• High-visibility yellow finish—powder-coated for visibility and added surface protection.

• Ergonomic push handle—assists with moving and positioning the lift table.

Applications

The SLM1000H is suitable for a range of industrial material handling tasks, including:

• Warehouses and distribution centres.

• Manufacturing and production facilities.

• Industrial assembly and processing.

• Packing and dispatch operations.

• Workshop maintenance.

• Lifting and positioning heavy equipment.

• Handling bulky or oversized goods.

Technical Specifications
