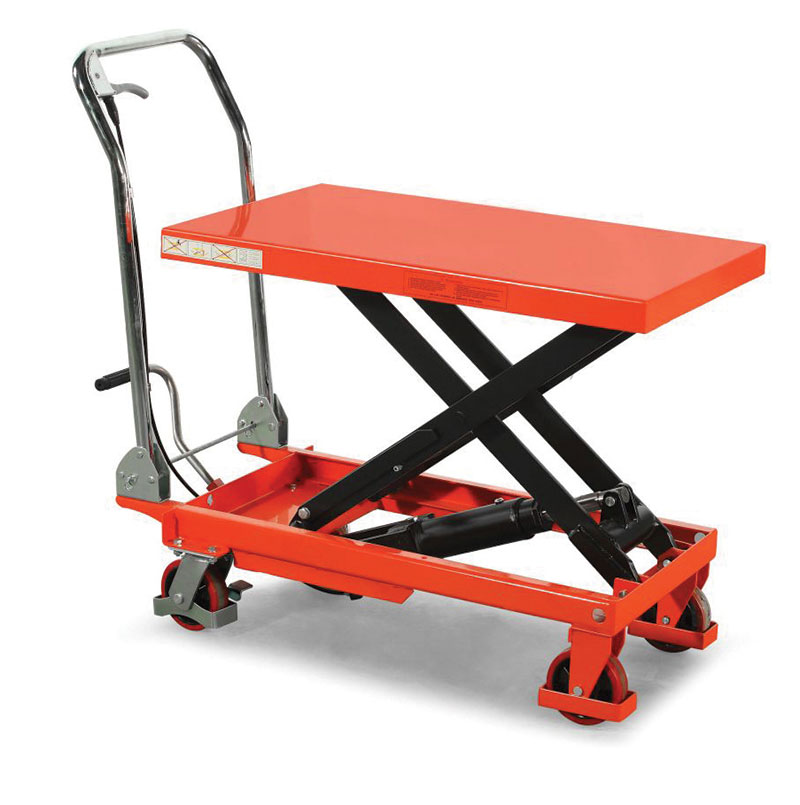

Mobile scissor lift trolley—SLM500

500 kg capacity

500kg capacity manual-assist scissor lift (SLM500)

Load capacity

500 kg

Platform size
(L x W)

850 x 500 mm

Height range

285-880 mm

Handle height

990 mm

Unit weight

81 kg

Castors

127 mm diameter (two swivel with brakes, two fixed)

Order code

SLM500

Manual-assisted scissor lift trolley

The SLM500 mobile scissor lift trolley has a manual-assisted hydraulic lift platform, and has a lifting capacity of up to 500 kg.

Features

  • Rear braking system.

  • Overload bypass valve.

  • Manual-assisted lift.

  • Manual push, precision hydraulic foot pump and quick release system.

  • Lockable swivel polyurethane castors with toe guard.

  • Hand release lever to lower the table to the preferred height.

  • Easy to use foot pump allows user to lift to the desired height.

  • Powder-coated safety yellow for high visibility and extra protection from wear and tear.

  • Mobile scissor lifts feature safety restraint bars that lock the platform into the fully raised position.

Typical applications

  • Warehouses

  • Factories

  • Storage facilities
