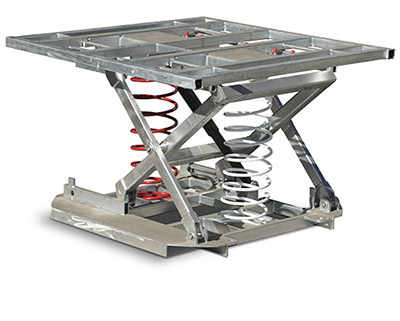

Pallet positioner—SLST

Square top platform—2000 kg capacity

Square top pallet positioner 2000kg capacity

Specifications

Load capacity

2000 kg (depending on height of pallet)

Platform size (LxW)

1046 x 1060 mm

Height range

225-709 mm

Unit weight

150 kg

Frame

Durable fully galvanised

Order code

SLST

Spring loaded pallet positioner

The pallet positioner automatically keeps the pallet or stillage load at the optimum working height when loading or unloading goods.

The square top pallet positioner does not have a turntable and is suited to loads that do not need rotation.

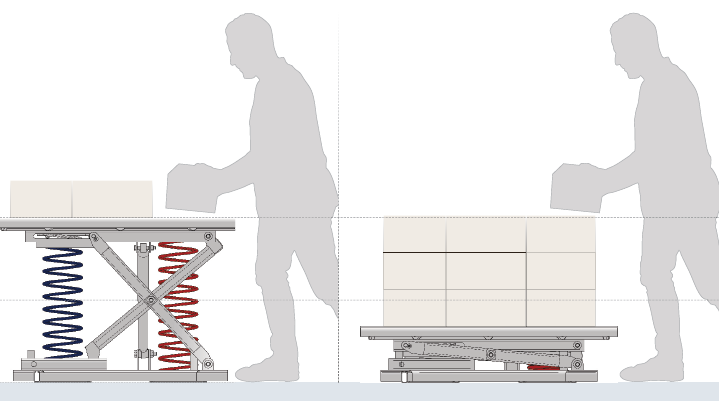

Resembling a scissor lift table in appearance, pallet positioners have a top deck and a base connected by a pair of scissor legs. The leveling mechanism is a set of springs and is set to the weight and height of the product. From then on, the levelers work automatically and raise or lower as the weight changes. The load setting is a simple process and for most users, springs never have to be changed. A shock absorber is used to prevent any bounce.

When requesting a quote

In order for us to correctly quote spring combinations for your requirement, can you please supply the following:

  • Pallet weight.

  • Pallet height.

Features

  • 2000 kg lift capacity.

  • Fork sockets.

  • Galvanized top, painted base.

  • Supplied with the appropriate springs to suit the length, width and height of product being placed onto it.

  • 3 years warranty.

  • Robust construction.

Benefits

  • The pallet positioner automatically keeps the pallet or stillage load at the optimum working height when loading or unloading goods.

  • The SLST does not have a turntable and is suited to loads that do not need rotation.

  • Reduces workplace injury and saves worker's backs.

  • Productivity gains up to 40%.

  • No power, air or maintenance required.

  • Durable and tough.

  • Fully galvanized and suitable for washdown.

  • Lifetime spring warranty.

  • 3 year frame warranty.

Safetech palift

Typical applications

  • Manual palletising and depalletising.

  • Factory and warehouse, washdown and harsh environments.

  • Suitable for use with stillages, cages and other containers.
