Spring-loaded pallet positioner—PL2000G

Galvanised finish with built-in turntable

Galvanised pallet positioner 2000kg capacity

Features and benefits

  • Load setting is a simple process.

  • Galvanised finish.

  • Dramatically reduces the effort required to pack palletised goods.

  • Built-in turntable allows simple load rotation and access to all sides.

  • Durable and tough, these pallet positioners can be used in a wide range of applications.

  • Automatically keeps pallet or stillage loads at an optimum working height when loading or unloading goods.

  • Supplied with three springs as standard.

Typical applications

  • Manual palletising and depalletising.

  • Factory and warehouse, washdown and harsh environments.

  • Suitable for use with stillages, cages and other containers.


Load capacity

2000 kg (depending on height of pallet)

Platform size

1100 mm diameter

Height range

240-705 mm

Base size (L x W)

920 x 930 (mm)

Net weight

105 kg

Order code

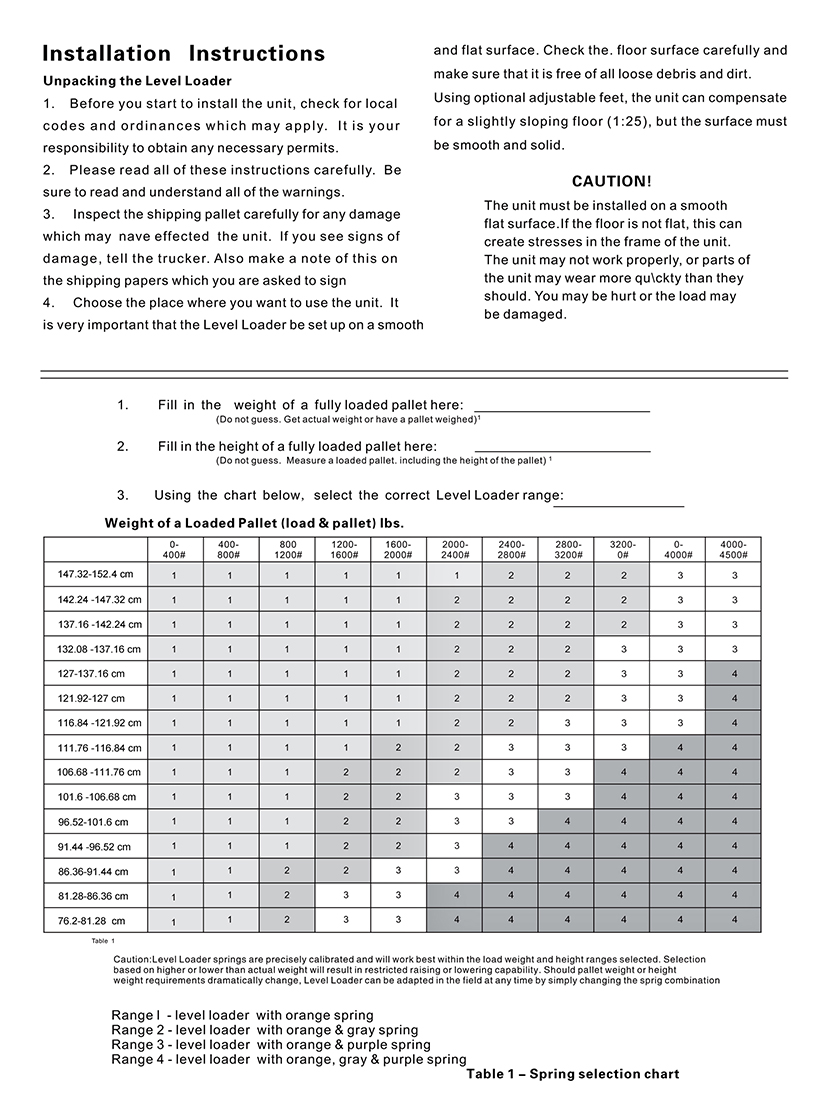

Download the installation instructions chart.
