Hard wheels

Nylon wheel range

LNN

Hard nylon, plain bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
50 x 20	30	25 x 6	LNN50

KNN

Hard nylon, plain bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
65 x 23	50	30 x 8	KNN65
75 x 23	65	30 x 8	KNN75
100 x 23	70	30 x 8	KNN100

DNQ

Hard nylon, precision bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
125 x 32	200	40 x 8	DNQ125

DNQ (white)

Hard white nylon, precision bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
125 x 32	200	40 x 8	DNQ125W

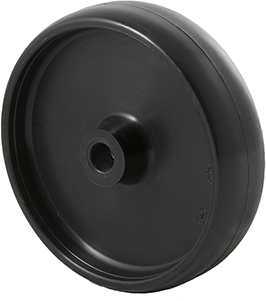

MNN

Hard nylon, plain bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
75 x 32	150	40 x 8	MNN75
100 x 32	150	40 x 8	MNN100
125 x 32	150	40 x 8	MNN125

MNN (white)

Hard white nylon, plain bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
75 x 32	150	40 x 8	MNN75W
100 x 32	150	40 x 8	MNN100W
125 x 32	150	40 x 8	MNN125W

JNN

Hard nylon, plain bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
100 x 35	300	45 x 10	JNN100
125 x 35	300	45 x 10	JNN125

JNR

Hard nylon, roller bearing, optional thread guard (add "G" to the end of the order code for optional thread guard, eg JNR100G).

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
100 x 35	300	45 x 10	JNR100
125 x 35	300	45 x 10	JNR125

ONA

Hard nylon, plain bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
100 x 40	350	60 x 12.7	ONA100
125 x 40	400	60 x 12.7	ONA125
150 x 40	450	60 x 12.7	ONA150
200 x 40	500	60 x 12.7	ONA200

ONR

Hard nylon, roller bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
100 x 40	350	60 x 12.7	ONR100
125 x 40	400	60 x 12.7	ONR125
150 x 40	450	60 x 12.7	ONR150
200 x 40	500	60 x 12.7	ONR200

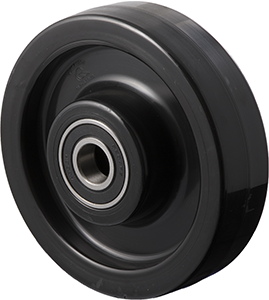

WNQ

Hard nylon, precision bearing, no thread guard.

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
150 x 40	600	60 x 12.7	WNQ125
200 x 40	600	60 x 12.7	WNQ200

Pallet truck roller range

PLN (82 mm)

White nylon, available in 20 mm (Q20), 25 mm (Q25) and 3/4" (Q34) precision bearings, or no bearing (NB).

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
82 x 83	800	83 x 20	PLN82X83Q20
82 x 83	800	83 x 25	PLN82X83Q25
82 x 83	800	83 x 34	PLN82X83Q34
82 x 83	800	83 x n/a	PLN82X83NB
82 x 100	800	100 x 20	PLN82X100Q20
82 x 100	800	100 x 25	PLN82X100Q25
82 x 100	800	100 x 34	PLN82X100Q34
82 x 100	800	100 x n/a	PLN82X100NB

Pallet truck wheel range

PLN (200 mm)

White nylon, available in 20 mm (Q20), 25 mm (Q25) and 3/4" (Q34) precision bearings, or no bearing (NB).

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
200 x 48	700	48 x 20	PLN200X48Q20
200 x 48	700	48 x 25	PLN200X48Q25
200 x 48	700	48 x 19	PLN200X48Q34
200 x 48	700	48 x n/a	PLN200X48NB

PLU

Polyurethane on nylon, available in 20 mm (Q20), 25 mm (Q25) and 3/4" (Q34) precision bearings, or no bearing (NB).

Diameter x tread (mm)	Max load (kg)	Hub x bore (mm)	Order code
200 x 48	700	48 x 20	PLU200X48Q20
200 x 48	700	48 x 25	PLU200X48Q25
200 x 48	700	48 x 19	PLU200X48Q34
200 x 48	700	48 x n/a	PLU200X48NB

PVC wheel range

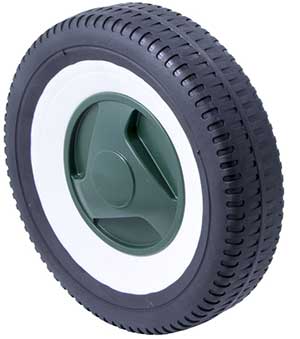

AVP

Thermoplastic Elastomer (TPE) flat profile tyre with plain bearing. Suitable for lawn mowers, barbecues and equipment needing a flat profile wheel.

Max load (kg)	Diameter x tread (mm)	Hub x bore (mm)	Order code
30	150 x 46	38 x 12.7	AVP150
30	200 x 49	38 x 12.7	AVP200
