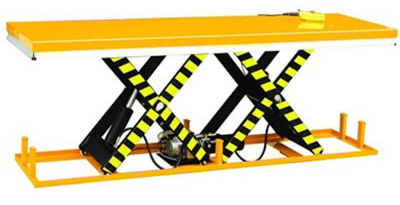

Powered lift table—Extra wide scissor lift

2000—4000 kg capacity

Extra wide scissor lift tables

Features and options

  • Our lift table range can be used in above-floor or in-floor pit applications.

  • The upper platform is fitted with an aluminium safety bar which prevents descent on contact with obstructions.

  • Easy-to-use button-operated.

  • Low-tension (24V) control box with up-down buttons.

  • Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.

  • Heavy duty cylinders with drainage system and check valve to stop the table lowering in case of a hose bursting.

  • Removable eyelets for lifting.

  • Made to order, with a lead time between 6–8 weeks.

  • Power source: 240V single phase or 415V 3 phase.

Order codes: LTW2000IM LTW4000IM

Capacity (kg)

2000

4000

Lowered height (mm)

205

230

Raised height (mm)

1000

1000

Platform size LxW (mm)

2500 x 820

2500 x 850

Net weight (kg)

265

360
