Conveyor Systems, powered, gravity, incline/decline

Custom manufactured conveyor systems

We can design, manufacture and supply a vast array of custom manufactured conveyor systems to suit your application:

Conveyor systems can be a crucial part of a manufacturing or distribution process - they need to be able to move product quickly, quietly and efficiently.

Belt Conveyors suit the movement of goods on flat surfaces when the speed of travel and the spacing of goods require control. Belt conveyors play an important role in the manufacturing process including the transport of the materials and components to assembly and the materials handling and shipping of the finished product. Whatever your unit load or bulk material capacity we can design a belt conveyor for horizontal, incline or decline path and at a predetermined rate.

Our experienced team will be able to analyse and ascertain the best solution to your materials handling issues.

Freight handling systems Cargo conveyor Food & beverage conveyor Wheel track conveyor
Inter-floor conveyor Pallet conveyor Modular conveyor Industrial conveyor
Sanitary conveyor Institutional conveyor Horizontal plane conveyor Mezannine floor conveyor
Incline belt conveyor Decline belt conveyor Warehouse fitouts Core sample conveyor
Accumulation conveyor Chain conveyor

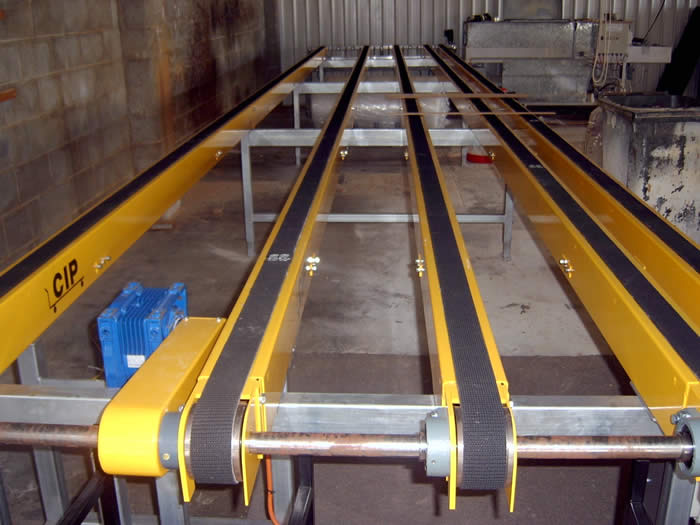

Powered belt on deck conveyor system designed to convey veneer ply from a ply lathe, belt design ensures that ply is not marked or damaged during conveying process



Powered belt on deck conveyor system designed to convey veneer ply from a ply lathe, belt design ensures that ply is not marked or damaged during conveying process

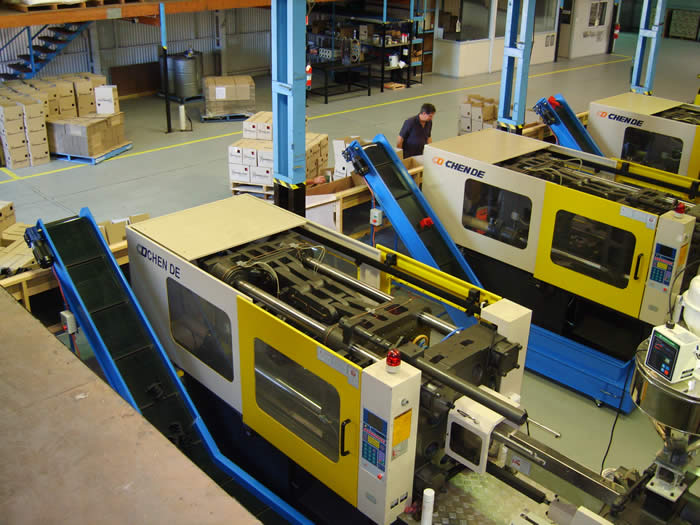

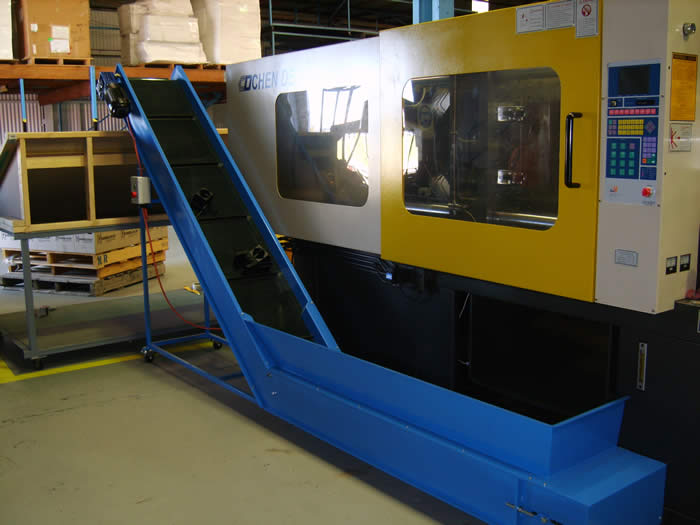

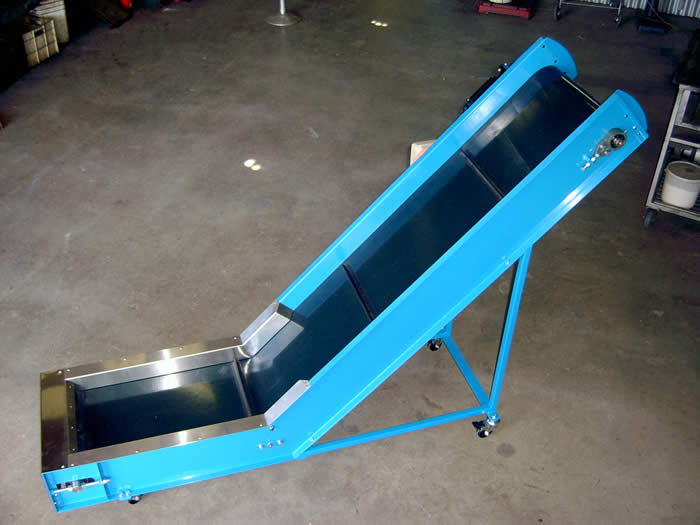

Powered Incline belt conveyors designed to convey product from the plastic injection moulding machines into storage bins

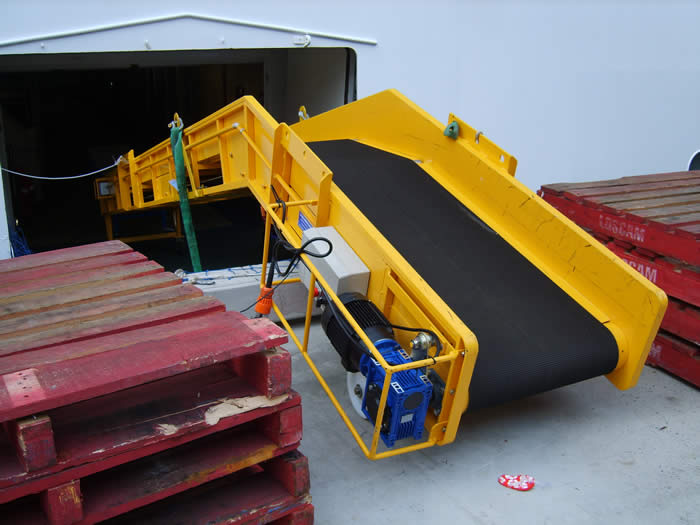

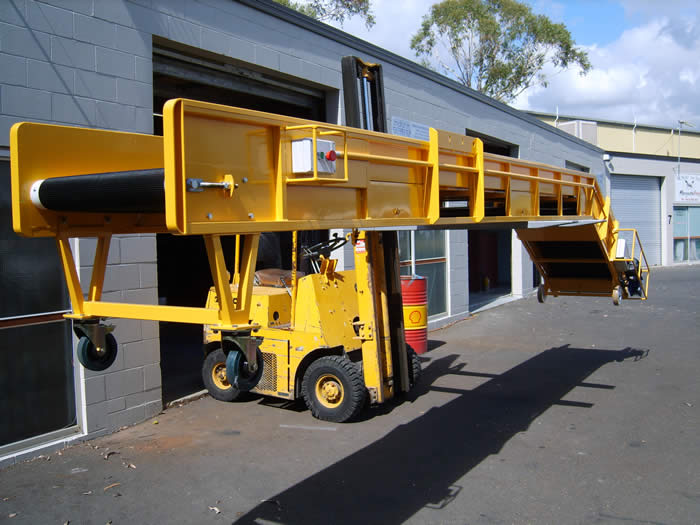

Powered baggage handling conveyor system used to load and unload passengers luggage onto and off ships at the Brisbane Terminal

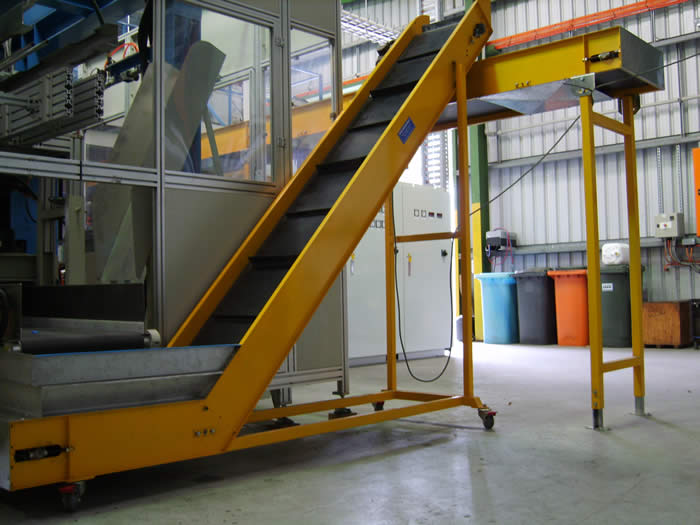

Powered incline conveyor system used to conveyor plastic injection moulded items from plastic injection moulder to upper transfer conveyor.



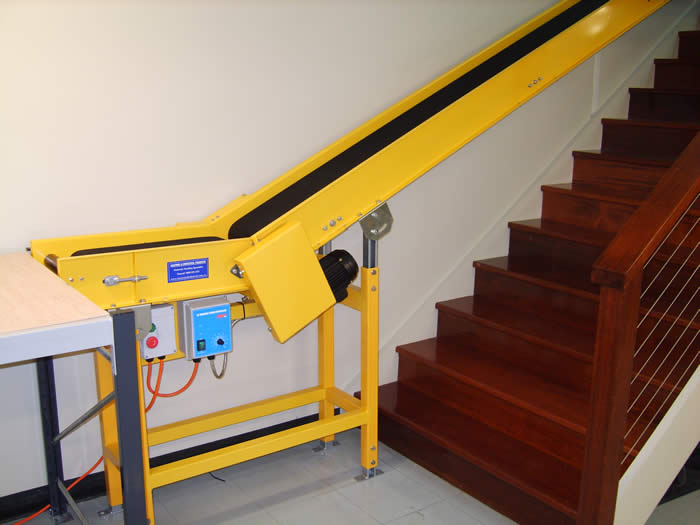

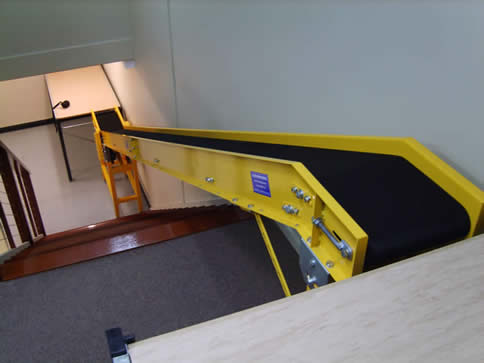

Powered incline belt conveyor designed for use in a bulk CD distribution centre - conveyor transfers boxes of CDS from upper and lower levels of staircase (forward and reverse functions)

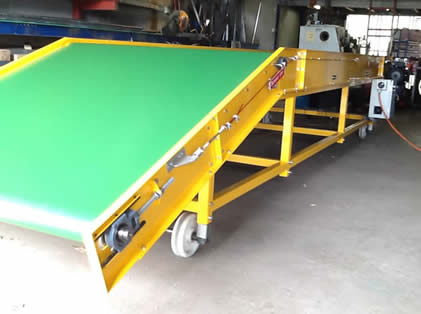

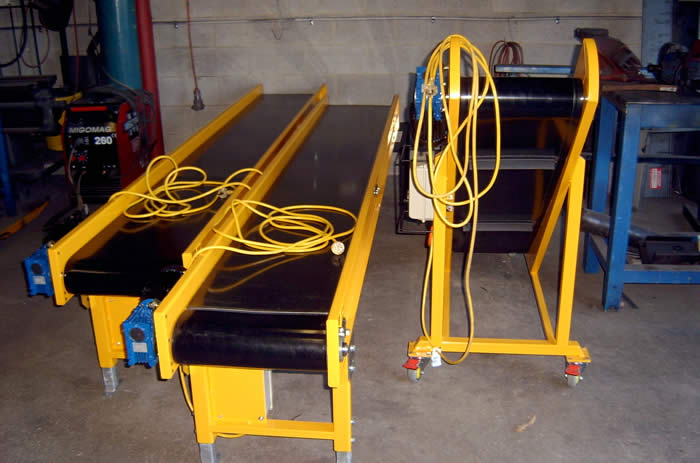

General purpose powered belt on deck conveyor systems, available in incline/decline or horizontal plane configurations

Timber slat blind conveyor system - conveyor system was designed to convey slats of timber at very slow speed which enabled the lacquer on timber slats to dry prior to assembly













Wheel track conveyor systems

Carton Flow Rail is ideal for applications where picking and stock turnover is frequent. Presenting on a stock rotation basis as inventory flows on a first in first out system, carton flow rails allow for more efficient operation to personnel by reducing manual handling. Easily incorporated into racking or custom framing, carton flow rail can provide unlimited solutions in the manufacturing industry.


Featuring high quality 35mm wide nylon rollers securely riveted into a pressed metal frame creating a strengthened rigid smooth operation due to consistent rollability.

Product code: CNFLOWRAIL






Length: 3000mm (can be cut to suit)
Mounting height: 36.34mm
Roller type: 25mm diameter black nylon (riveted into frame)
Roller width: 25mm
Roller pitch: 33mm
Frame: Pressed steel
Frame width: 36.98mm

Conveyor wheel track wheels:

Code: 28444

50mm diametre x 15mm wide steel wheel, 25mm hub, 6.5mm bore

Code: 52225

50mm diametre x 15mm wide nylon wheel, 25mm hub, 6.5mm bore



Ball transfer units

These simple but very adaptable free rolling units provide the capability to easily re-direct goods in any direction with minimum effort. Operators can transfer any flat object in any direction on a horizontal plane. They are especially suited for transferring goods from one conveyor line to another, the movement of boxes of parts around machines and manipulating heavy steel plates around presses and guillotines. They also serve as multi-directional switches and transfer stations for heavy flat objects



Code
Ball type
Plate size
Bolt hole centres
Ball diametre
Capacity
Mounting height

CBTC1

Chrome
70mm long x 50mm wide
56mm
25.4mm
45Kg per unit
31mm




Sanitary and food conveyor

Sanitary and food conveyorSanitary and food conveyor

Fairglide shaft driven conveyors

Fairglide shaft driven conveyors

Gravity Conveyor

gravity conveyor rollersgravity conveyor

Gravity conveyor is ideally suited to handling operations which cannot justify the expense of powered equipment. They provide efficient handling at negligible costs. Gravity conveyors are also very easy to set up, dismantle or relocate.

Medium heavy duty gravity conveyor frames are kept in stock and are available in 1500mm and 3000mm lengths, standard frame widths are 304mm wide, 458mm wide and 607mm wide (the over frame measurement).

Medium heavy duty gravity conveyor frames are constructed from 90mm x 30mm x 2.5mm mild steel channel. The gravity conveyor table frames are manufactured in Australia.  The frames can be factory made to suit any nominated width and length.

Standard sized medium heavy duty frames are hole punched every 39.5mm which allows roller pitches of 79mm, 118.5mm and 158mm. Cross bars on the conveyor tables are fully welded (not bolted together), they are supplied with a painted blaze blue finish and butting plates which allow multiple frames to be bolted together.

Gravity rollers kept in stock to suit medium heavy duty gravity conveyor frames are available in Polypropylene, Medium heavy duty black steel, Medium heavy duty galvanized steel. Standard roller specifications are:

Polypropylene rollers



Roller diametre:

50mm

Roller type:

2mm wall polypropylene tube

Bearings:

Plastic caged mild steel balls

Shaft:

9.5mm diametre spring loaded mild steel

Lengths available:

240mm, 394mm, 543mm over bearing



Medium heavy duty black steel rollers



Roller diametre:

50mm

Roller type:

1.6mm wall medium heavy duty black steel

Bearings:

Unground steel

Shaft:

9.5mm diametre spring loaded mild steel

Lengths available:

240mm, 394mm, 543mm over bearing



Medium heavy duty galvanized steel rollers



Roller diametre:

50mm

Roller type:

1.6mm wall medium heavy duty galvanized steel

Bearings:

Unground steel

Shaft:

9.5mm diametre spring loaded mild steel

Lengths available:

240mm, 394mm, 543mm over bearing



Custom manufactured gravity conveyor rollers:  Gravity conveyor rollers can be custom manufactured to suit any length you require.  When ordering custom manufactured rollers to suit an existing frame, the inside frame measurement should be quoted to ensure the rollers are manufactured to the exact length you require. Custom manufactured rollers can be supplied in a variety of different products, lengths and diametres ie; Aluminium tube, Stainless steel tube, PVC tube, Galvanized pipe, Polypropylene tube, Steel tube.

Heavy duty gravity conveyor frames are made to order in 1500mm and 3000mm lengths, s
tandard frame widths are 304mm wide, 458mm wide and 607mm wide (the over frame measurement).

Medium heavy duty gravity conveyor frames are constructed from 90mm x 30mm x 2.5mm mild steel channel. The gravity conveyor frames are manufactured in Australia.  The frames can be factory made to suit any nominated width and length.

Standard sized heavy duty frames are hole punched every 39.5mm which allows roller pitches of 79mm, 118.5mm and 158mm. Cross bars on the conveyor frames are fully welded (not bolted together), they are supplied with a painted blaze blue finish and butting plates which allow multiple frames to be bolted together.

Gravity rollers kept in stock to suit heavy duty gravity conveyor frames are available in Heavy duty black steel and Heavy duty galvanized steel. Standard roller specifications are:

Heavy duty black steel rollers



Roller diametre:

50mm

Roller type:

2.3mm wall heavy duty black steel tube

Bearings:

Precision

Shaft:

12mm diametre spring loaded mild steel

Lengths available:

240mm, 394mm, 543mm over bearing



Heavy duty galvanized steel rollers



Roller diametre:

50mm

Roller type:

2.3mm wall heavy duty galvanized steel tube

Bearings:

Precision

Shaft:

12mm diametre spring loaded mild steel

Lengths available:

240mm, 394mm, 543mm over bearing

Conveyor supports
Solid RHS construction
Painted blaze blue finish
Conveyor frames can be bolted to the supports,  supports can be bolted to the floor for added stability and strength of the conveyor system
Standard sized conveyor supports kept in stock have an adjustment from 600mm – 900mm offering a minimum height of 700mm and a maximum height of 1000mm (to top of roller) when the conveyor system is fully assembled and extended
Larger supports can be made to order with an adjustment from 1016mm – 1524mm offering a minimum height of 1116mm and a maximum height of 1625mm (to top of roller) when the conveyor system is fully assembled and extended
Conveyor supports can be manufactured to suit castors so that the conveyor system is mobile
Conveyor supports are a kept in stock to suit 304mm, 458mm and 607mm wide frames










Extendaflex Conveyor Systems

Stand Alone Materials Handling
EXTENDABLE (Extendaflex) Conveyor systems

A unique flexible conveyor that expands, contracts, twists and turns into an 'S' shape or circle. Quick set-up and adjustable height legs on lockable castors.  Skate wheels or polypropylene rollers designed to ensure self-tracking.

350 Series (350mm wide)

Economical expandable gravity conveyor for multi-sized packages in low to medium volume applications. Polypropylene roller or skate wheeled units available.  350mm wide, 200Kg capacity.

Product code Description:
Shipping weight:
ECS535P 5 support legs, plastic skate wheels, extended length 7500mm
79Kg
ECS735P 7 support legs, plastic skate wheels, extended length 7500mm
90Kg
ECR531P 5 support legs, one polypropylene rollers on each run, extended length 7500mm
86Kg
ECR532P 5 support legs, two polypropylene rollers on each run, extended length 7500mm
86Kg
ECR731P 7 support legs, one polypropylene roller on each run, extended length 7500mm
98Kg
ECR732P 7 support legs, two polypropylene rollers on each run, extended length 7500mm
101Kg
ECS535S 5 support legs, steel skate wheels, extended length 7500mm
98Kg
ECS7352 7 support legs, steel skate wheels, extended length 7500mm
98Kg

Stainless steel construction 350 Series (350mm wide)

Product code Description:
Shipping weight:
ECS535PSS 5 support legs, plastic skate wheels, extended length 7500mm
79Kg
ECS735PSS 7 support legs, plastic skate wheels, extended length 7500mm
90Kg
ECR531PSS 5 support legs, one polypropylene roller on each run, extended length 7500mm
86Kg
ECR532PSS 5 support legs, two polypropylene rollers on each run, extended length 7500mm
86Kg
ECR732PSS 7 support legs, two polypropylene rollers on each run, extended length 7500mm
101Kg

460 Series (460mm wide)

General purpose gravity conveyor for medium volume applications in warehouse or storage. Polypropylene roller or skate wheeled units available.  460mm wide, 200Kg capacity.

Product code Description:
Shipping weight:
ECS546P 5 support legs, plastic skate wheels, extended length 7500mm
101Kg
ECS746P 7 support legs, plastic skate wheels, extended length 7500mm
109Kg
ECR542P 5 support legs, two polypropylene rollers on each run, extended length 7500mm
113Kg
ECR742P 7 support legs, two polypropylene rollers on each run, extended length 7500mm
125Kg
ECS546S 5 support legs, steel skate wheels, extended length 7500mm
123Kg
ECS746S 7 support legs, steel skate wheels, extended length 7500mm
135Kg
ECS846S 8 support legs, steel skate wheels, extended length 8800mm
157Kg

Stainless steel construction 460 Series (460mm wide)

Product code Description:
Shipping weight:
ECS546PSS 5 support legs, plastic skate wheels, extended length 7500mm
101Kg
ECS746PSS 7 support legs, plastic skate wheels, extended length 7500mm
109Kg
ECR542PSS 5 support legs, two polypropylene rollers on each run, extended length 7500mm
113Kg
ECR742PSS 7 support legs, two polypropylene rollers on each run, extended length 7500mm
125Kg



610 Series (610mm wide)

Flexible expandable conveyor for multi-sized material in high volume applications.  For truck loading and unloading. Polypropylene roller or skate wheeled units available.  610mm wide, 200Kg capacity.

Product code Description:
Shipping weight:
ECS568P 5 support legs, plastic skate wheels, extended length 7500mm
108Kg
ECS768P 7 support legs, plastic skate wheels, extended length 7500mm
120Kg
ECR562P 5 support legs, two polypropylene rollers on each run, extended length 7500mm
123Kg
ECR762P 7 support legs, two polypropylene rollers on each run, extended length 7500mm
135Kg
ECR763P 7 support legs, three polypropylene rollers one each run, extended length 7500mm
138Kg
ECS568S 5 support legs, steel skate wheels, extended length 7500mm
138Kg
ECS768S 7 support legs, steel skate wheels, extended length 7500mm
151Kg
ECS868S 8 support legs, steel skate wheels, extended length 8800mm
175Kg

Stainless steel construction 610 Series (610mm wide)

Product code Description:
Shipping weight:
ECS568PSS 5 support legs, plastic skate wheels, extended length 7500mm
138Kg
ECS768PSS 7 support legs, plastic skate wheels, extended length 7500mm
138Kg
ECR562PSS 5 support legs, two polypropylene rollers on each run, extended length 7500mm
151Kg
ECR762PSS 7 support legs, two polypropylene rollers on each run, extended length 7500mm
175Kg



Polyproyplene roller systems close down to 2400mm and extend out to 7500mm (rollers are at 150mm pitch when fully extended)

Skate wheel systems close down to 1800mm and extend out to 7500mm (rollers are at 150mm pitch when fully extended)

The adjustable supports offer a height range from 700mm to 1000mm (top of roller or skate wheel)

Supports are supplied with 125mm diametre non marking rubber castors, brakes are supplied on alternate legs

All units are manufactured from zinc finished steel and are manufactured in Australia

Stainless steel units available

Joiner clips can be supplied so that two units can be connected together

Package end stops are available to stop product from falling off end of system



Powered and Belt Conveyors
Powered roller conveyors

Powered roller conveyors are ideally suited to horizontal movements yet can accommodate small elevation changes. The system allows for easy side loading/unloading, both manually and mechanically. It can be integrated with automatic diverters and the like to provide a wide range of materials handling solutions. Conveyors can be chain driven, belt driven or lineshaft driven. There are various methods available which can be utilised to provide accumulation and/or singulation of product for manufacturing, assembly or processing operations.

Belt conveyors suit the movement of goods on flat or elevated surfaces where the speed of travel and the spacing of goods requires control. They play an important role in the manufacturing process including the transport of raw materials and components to assembly, and the materials handling and shipping of finished products. Belt conveyors are flexible and can be designed to be either fixed, portable or telescoping for either horizontal applications or inclined or declined between floors and mezzanines providing a link between multi-floor systems. Product size and weight is taken into account when designing belt conveyors. The width of the belt and the angle of incline determine the most suitable drive system and the composition of the belt. Expert design is important for selecting the right belt conveyor for your requirements. Our experienced staff will design a belt conveyor system for your particular manufacturing or materials handling solutions.
