Wheels

General Purpose Utility Wheels

general wheels title

Wheel Specification

Wheel COde
Wheel Code

capacity
Capacity
per each

diameter x width
Diameter x Width

hub width
Hub Width X Bore

bearing type

Bearing Type

Utility puncture proof robust wheel

Puncture free for wheelbarrows, utility equipment, etc.

Available with either double sealed precision ball
bearings for easiest rolling (max speed 10km/hr) or
plain inserted bushes for use where wet conditions
may be encountered.

Optional bearings:

Precision ball 5/8" or 3/4"

Plain bush 5/8" or 3/4"

Utility.tif

R250/50C-PRYQ20

150kg


250x50

60x20

Ball
Ball

R250/50C-PRYQ34

R250/50C-PRYQ58

80x20

R300/50C-PRYQ20

300x50

R300/50C-PRYQ34

R300/50C-PRYQ58

R400/70C-PRYQ20

400x70

R400/70C-PRYQ34

R400/70C-PRYQ58



Solid cushioned wheel

Recommended as a puncture proof tyre where broken
glass, nails, etc. may cause trouble.
Use also on equipment where the tyre must not be flat

e.g. fire extinguisher trolleys or trolleys at a holiday home.

It has the size and width to be useful on construction sites

Optional bearings:

Precision ball 5/8" or 3/4"

Plain bush 5/8" or 3/4"


.



Solidcushioned.tif

R280/70R-SRBB10

200kg

280x70

60x1”

cone

Cone

R280/70R-SRBB34

R280/70R-SRBB58



Hand truck wheels

Medium duty offset design for OEM’s and
replacement markets.

Durable and economical crumbed rubber tyre,
mounted on a high impact polypropylene centre,
fitted with 20mm deep groove bearings as standard.

Optional bearings:

Precision ball 5/8”, 3/4”
Plain bush 5/8”, 3/4”

Handtruck.tif

U200/50C-POYB20

135kg

200x50

56x20

cone

Cone

U200/50C-POYB34

U200/50C-POYB58

U200/60C-POYB20

200x60

U200/60C-POYB34

U200/60C-POYB58



General purpose rubber utility wheel

Used on light lawn equipment, light lawn carts,
toys, bottle trolleys, etc.

Attachment: 1/2” ratchet caps (RC12) offer a
bright nickel finish to the cap. Hold the cap in
place with a short length of 22mm OD (1/2”)
tube supporting the outer rim, and then tap on
with a hammer. Always use these on bright
steel axles. The PRA and PRB wheels are an
offset centre so the axle does not stick out,
the PRP is symmetrical.
Optional hub cap (GHUBCAP)



PRA150.tif

PRB200.tif

PRA125

50kg

125x36

38x1/2”

plainPlain

PRB125

coneCone

PRA150

75kg

150x36

plainPlain

PRB150

coneCone

PRA200

100kg

200x45

plainPlain

PRB200

coneCone

PRP250

250x45

plainPlain

Lawn mower, Scrubber and Nylon wheels

ights reserved Fallshaw Pty Ltd 2008

general wheels

Wheel Specifications

Wheel COde
Wheel Code

capacity
Capacity
per each

diameter x width
Diameter x Width

hub width
Hub Width X Bore

bearing type

Bearing Type

Lawn mower wheels

TPE tyred flat profile wheels

For use on lawn mowers, BBQs,
and other equipment needing a flat profile wheel.

Lawnmower.tif

AVP150

30kg

150x46

38x1/2”

plain
Plain

AVP175

175x46

AVP200

200x49


Polisher/Scrubber wheel

Grey tyred non-marking. Specially developed for
floor polishers/scrubbers and other applications
needing a non-marking tyre. Centre is white
polypropylene, fitted with either plain bearings or
ball bearings. The wheel is offset so the axle does
not stick out.

PSA200-polisher.tif

PSA200(C)

80kg

200x32

38x1/2”

plain

Plain

PSB200(C)

cone
Cone

Rubber tyred wheel - blue

Advantages:Non-markingHighest resilience of
solid tyres - for easiest rolling over bumps
Longest life

Disadvantages:
Resilient wheels get harder to push at
higher loadings

HBR150-table.tif

JBA100

150kg

100x32

45x1/2"

plain
Plain

JBR100

45x20

roller
Roller

JBA125

180kg

125x35

45x1/2"

plain
Plain

JBR125

45x20

roller
Roller

HBA150

180kg

150x40

60x20

plain
Plain

HBR150

200kg

roller
Roller

HBA200

180kg

200x50

plain
Plain

HBR200

200kg

roller
Roller

Nylon - general purpose

These non-rusting, non-scratching wheels have
many uses such as toys, trolleys, mechanical
handling devices, replacements in castors, etc.

Nylon can be used from -30°C up to +100°C for
short periods and longer periods between 0°C
up to 80°C.

It can be used in wet conditions, but it cannot
be constantly immersed.

Good resistance to most chemicals. Roller
bearings recommended at heavier loads.

MNN100.tif

LNN50

30kg

50x20

25x1/4”

plain
Plain

KNN65

60kg

65x23

30x12

KNN75

65kg

75x23

MNN75*

100kg

75x32

40x12

KNN100

70kg

100x23

30x12

JNN100.tifJNN100 - plain bearing moulded as part of wheel.
(Axle bushes fitted to all ‘N’ bearing wheels except LNN50)



MNN100

150kg

100x32

40x12

JNN100

280kg

100x32

45x1/2”

JNA100.tifONA100 - plain bearing installed



JNR100

45x20

roller
Roller

ONA100*

350kg 770lb

100x40

60x1/2”

plain
Plain

ONR100

roller
Roller

MNN125

150kg 330lb

125x35

40x12

plain
Plain

JNN125

300kg 660lb

45x1/2"

JNR100.tifJNR100 - roller bearing inserted



JNR125

350kg 770lb

45x20

roller
Roller

ONA125

400kg

125x40

60x1/2”

plain
Plain

ONR125

roller
Roller

ONA150

150x40

60x20

plain
Plain

WNQ150.tifWNQ150 - precision bearing.



ONR150

roller
Roller

WNQ150

600kg

cone
Cone

ONA200

400kg

200x40

plain
Plain

WNQ150.tifWNQ200 - precision bearing.



ONR200

roller
Roller

WNQ200

600kg

cone
Cone

All rights reserved Fallsha



High and Low Temperature Wheels (available in castors)

All wheels can be fitted into forks with high or low temp grease options

High/Low Temperature

Wheel for extreme temperatures...

Diametre x

width  (mm)

hub width
Hub width &
bore (mm)



Wheel code

High/Low temperature useage:

Nylon glass reinforced

(lighter hub)

Plain
70Kg @ 150 Degrees C
75 x 32
40 x 12
MHH75

Available in swivel, fixed and bolt hole castor forks

M Series range

Available with high temperature or low temperature grease options
Plain
80Kg @ 150 Degree C
100 x 32
40 x 12
MHH100

Phenolic K

(high temperature)



Plain

125Kg @ 100

Degree C

100Kg @ 250 Degrees C

40 Kg @ 300

Degrees C

100 x 35

40 x 12

MKT100

Available in swivel, fixed and bolt hole castor forks

M Series range

Available with high temperature or low temperature grease options

Phenolic W

(very high temperature

Plain

125Kg @ 200

Degree C

100Kg @ 300 Degrees C



100 x 35

40 x 12

MWW100

Available in swivel, fixed and bolt hole castor forks

M Series range

Available with high temperature or low temperature grease options

Nylon glass reinforced (heavier hub)

Plain

100Kg @ 210

Degree C



100 x 32

45X20

JHH100

Available in swivel, fixed and bolt hole castor forks

J Series range

Available with high temperature or low temperature grease options

Cast iron

(high temperature)

Plain

230Kg @ 400

Degree C



100 x 38

45x20

JCI100

Available in swivel, fixed and bolt hole castor forks

J Series range

Available with high temperature or low temperature grease options

Nylon glass reincorced (heavier hub)

Plain

200Kg @ 210

Degree C



150 x 40

60x20

OHH150

Available in swivel and fixed castor forks

O Series range

Available with high temperature or low temperature grease options

Cast iron

(high temperature)

Plain

250Kg @ 400

Degree C



150x50

60x20

WCI150

Available in swivel and fixed castor forks

W Series range

Available with high temperature or low temperature grease options

The normal temperature limit of our standard wheels and castors in Zero Degrees Celsius to 60 Degrees Celsius.  Within this range the Fallshaw products work normally for their full working life.  In colder or hotter conditions they behave differently and may need to be modified to work efficiently.

High Temperature Use:

Above 60 Degrees Celsius you must specify temperature of use at the time of ordering.  As temperatures increase, tyre materials become softer and this lowers the load capacity.  At still higher teperatures (and when hot for longer pieriods), the materials begin to deteriorate which shortens working life.

Polypropylene and rubber wheels begin to lose considerable strength between 60 Degrees Celsius and 100 Degrees Celsius.

Polyurethane tyres retain most of their properties up to 90 Degrees Celsius even for long periods (apart from a gradual lowering of load capacity) and can be used for short periods at even higher temperatures.  However, caution is needed.  For example at 100 Degrees Celsius they lose only 5% of their tensile strength after 20 days but at 120 Degrees Celsius they are down to 50% in 20 days while at 150 Degrees Celsius they are down to only 15% in 5 days.  Fibreglass reinforced nylon wheels are the preferred wheel for extended periods up to 210 Degrees Celsius (assuming most of their life is spent outside the oven) and for short periods up to 230 Degrees Celsius.

Phenolic wheels (with special inorganic fillers and PTFE bushes) are preferred for extended periods up to 280 Degrees Celsius (assuming most of their life is spent outside the oven) and for short peiouds up to 300 Degrees Celsius.  These have a thick cross section but are more brittle than either nylon or ordinary grades of phenolic.  For sustained high temperature use, we offer a range of cast iron wheeled castors (caution is needed as cast iron wheels will cause damage to concrete floors) used with high temperature grease.  This grease can be used up to 230 Degrees Celsius for long periods.  Above 230 Degrees Celsius even more exotic greases need to be used....consult with our sales reprentatives.

Low Temperature Use:

Below Zero Degrees Celsius you must specify temperature of use at the time of ordering. The standard grease supplied in Fallshaw castors is lithium complex grease.  This has excellent water resistance, bearing retention and long life.  But below 5 Degrees Celsius it begins to stiffen quickly and will soon freeze the bearings so that neither the castor swivels nor the wheel bearings revolve.  If specified at the time of ordering, we can use a special aeronautical grease which is a synthetic oil with a migrogel thickener to work effectively in chilling rooms, freezing stores and outdoor winter use in northern countries where ordinary grease would be useless.

As the temperature becomes lower, the softer rubber and polyurethane treads on the wheels become less elastic.  For exapmple the polyurethane used on the H series range of castors slowly stiffens from + 20 Degrees Celsius down to - 20 Degrees Celsius but then rapidly stiffens until at - 50 Degrees Celsius it becomes brittle.

As temperature goes below Zero Degrees Celsius nylon can become brittle (particularly if it is kept for long periods in the very dry air in freezing rooms).  At such times we recommend fibreglass reinforced wheel which can be used down to -30 Degrees Celsius.


Pallet Truck Wheels
Wheels
Diameter symbol
Capacity symbol
Hub length symbol
MODEL
Tyre material
Diam x width
Kg cap.
Width X bore
Bearing
Nylon
175x48
600
48x20
PLN175X48Q20
Pallet Truck Wheels
48xn/a
PLN175X48NB

200x48

700
48x20
PLN200X48Q20
48xn/a
PLN200X48NB
Pallet Truck Wheels
Urethane
200x48
700
48x20
PLU200X48Q20
48xn/a
PLU200X48NB
Rollers
Nylon

82x83

82x100

800

800

83x20

82X100

PLN82X83Q20

PLN82X100Q20




Pneumatic Wheels - steel rim

L Core Header

pneumatic wheels steel

Tread Pattern

diameter width

Diameter x width

wheel code

Wheel Code

bearing type
Bearing Type

ID x width

Standard
Optional

inflation  pressure
Inflationpressure

laod capacity
Capacity at various speeds

8 km/hr 5mph

15KM/hr 10mph

tread2

220x54
83/4x21/8”

250X4LUG-SB20

cone
Cone

20 X 60
20mmX23/8”

*5/8”, 3/4”

210. k.p.a. 30 psi

DO NOT over inflate

warning - Do not exceed these capacities of spreads

120KB
265lb

100KB
220lb

tread3

275x65
11x21/2”

250X6IND-SB10

cone
Cone

1” X 60
1 x 23/8”

*5/8”, 3/4”, 20mm

140kg
310lb

90kg

200lb

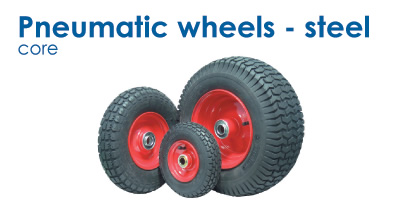

Steel centre pneumatics:

One piece, continuous precision welding gives a strong, wobble free wheel. Centres up to and including the 500x6 are manufactured from 1.8mm (1/16”) steel, and the 650x8 is of 2mm (1/ 8”) thick steel
[NOTE: some of the cheaper centres on the market are manufactured from steel as thin as 0.6mm (1/32”)]



tread4

250x70
10x3/4”

300X4DMD-SB20

cone
Cone

20 X 60
20mmX23/8”

*5/8”, 3/4”

140kg310lb

110kg240lb



Bearings:

‘Deep Groove’ shielded bearings fitted to a toughened heavy duty housing enables true running and extra strength (NOTE: Deep groove bearings can last up to 3 times longer than normal pressed bearings).



Tyres:

4 ply (6 ply on HWY tread) for longer, rougher life (many imports use 2 ply).



tread 9

265x70
101/2x23/4”

350X4DMD-SB20

180kg395lb

160kg
350lb



Tread Patterns:

For wheels pulled or pushed at low speeds (not driven) the tread pattern is not critical. the following are standard; other patterns can be offered by negotiation.



tread 6

320x80
125/8x31/8”

350X6KNO-SB10


cone
Cone

1” X 60
1 x 23/8”

*5/8”, 3/4”, 20mm

200kg
440lb

180kg

395lb

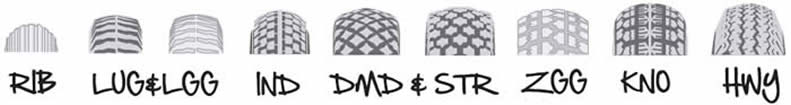

IND: The normal industrial tread, a round profile with an even pattern
for general use.
LUG: Strongly marked cross lines on a fairly flat tread surface. Good for
running in straight lines.
KNO: This knobbly pattern is often preferred for outdoor use, where its
strongly marked tread takes a good grip on soft ground.
DMD: Diamond shaped pads on a flatter surface. Often used in rougher
construction sites. Good for softer grassed surfaces, but may become
clogged with mud.
GRA: A wide tread, designed specifically with ride-on mowers and
associated equipment in mind.
Will traverse virtually any surface they come across.



tread8

400x100
16x4”


400X8HWY-SQ10


available in 410 Series as V11662812

ball

Ball

1” X 72
1X27/8”

360kg

795lb

340kg

750lb

WARNING

The load and cold inflation pressures
imposed on the combination of tyre
and wheel must not exceed the recommendations, even though
the tyre is approved for a higher
load or inflation pressure.

USE OF PNEUMATIC WHEELS
OTHER THAN AS RECOMMENDED
CAN BE DANGEROUS. If in doubt
the factory for information.

tyre diagram

tread8

400x100
16x4”

400X8KNO-SB10

cone
Cone

1” X 107
1x41/4”

*5/8”, 3/4 or 20mm

220kg

485lb

200kg

440lb

tread10

330x125
131/2x5”

500X6GRA-SB10

cone
Cone

1” X 107
1x41/4”

*5/8”, 3/4 or 20mm

130kg

285lb

100kg

220lb

* ID of bearing is reduced by inserting flanged nylon bush into the standard bearing - add 4mm to hub width

tread10

420x165
161/2x61/2”

650X8GRA-SB10


cone
Cone

1” X 150
1x6”

*5/8”, 3/4 or 20mm

230kg

510lb

200kg

440lb

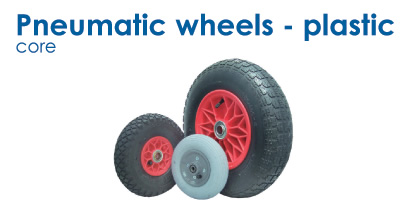

Pneumatic Wheels - Plastic rim

All rights reserved Fallshaw Pty Ltd 2008

L Core Header

pneuamtic wheels plastic

Tread Pattern

diameter width
Diameter x width


wheel code
Wheel Code

bearing type
Bearing Type

ID x width

Standard
Optional

inflation  pressure
Inflation pressure

laod capacity
Capacity at various speeds

8 km/hr 5mph

15KM/hr 10mph

tread 1

200x50
8x2”

200X50RIB
-PR20

Roller

roller

20 X 60
20mmX23/8”

210. k.p.a. 30 psi

DO
NOT
over
inflate

warning

75kg
165lb

-

200X50RIB
-PQ12

Ball

Ball

12 X 60
12mmX23/8”



Plastic centre pneumatics:

• Thick sections, large radii, multi-web design for strength
(stronger than most imported steel centres.)

• Corrosion resistant polypropylene for UV fade protection

• High engineering standrads for wobble-free wheels



tread 2

220x54
83/4x21/8”

250X4LUG
-PWB20

Cone
cone

20 X 60
20mmX23/8”

5/8”, 3/4”

100kg
200lb

80kg
175lb

250X4LUG
-PWA20

Plain

Plain

20 X 60
20mmX23/8”

5/8”, 3/4”, 1”



Bearings:

‘Deep Groove’ shielded bearings fitted to a toughened heavy
duty housing enables true running and extra strength
(NOTE: Deep groove bearings can last up to 3 times longer
than normal pressed bearings).



Tyres:

4 ply (6 ply on HWY tread) for longer, rougher life
(many imports use 2 ply).



tread3

275x60
11x23/8”

250X6IND
-PWB20

Cone
cone

20 X 60
20mmX23/8”

5/8”, 3/4”

110kg
310lb

90kg

200lb

250X6IND
-PWA20

Plain

plaion

20 X 60
20mmX23/8”

5/8”, 3/4”, 1”



Tread patterns:

For wheels pulled or pushed at low speeds (not driven)
the tread pattern is not critical. The following are standard;
other patterns can be offered by negotiation.

IND: The normal industrial tread, a round profile with an even
pattern for general use.

RIB: Straight lines along the tread, common on wheelchairs
(plastic rims only).

KNO: This knobbly pattern is often preferred for outdoor use,
where its strongly marked tread takes a good grip on soft ground.

DMD: Diamond shaped pads on a flatter surface. Often used in
rougher construction sites. Goodfor softer grassed surfaces, but
may become clogged with mud.



tread 4

250x70
10x23/4”

300X4DMD
-PWB20

Cone
cone

20 X 60
20mmX23/8”

5/8”, 3/4”

120kg
265lb

110kg
240lb

300X4DMD
-PWA20

Plain

plain

20 X 60
20mmX23/8”

5/8”, 3/4”, 1”

tread 5

265x70
101/2x23/4”

350X4DMD
-PWB20

Cone
cone

20 X 60
20mmX23/8”

5/8”, 3/4”

140kg
310lb

90kg

200lb

350X4DMD
-PWA20

Plain

plain

20 X 60
20mmX23/8”

5/8”, 3/4”, 1”

WARNING

The load and cold inflation pressures
imposed on the combination of tyre
and wheel must not exceed the recommendations, even though
the tyre is approved for a higher
load or inflation pressure.

USE OF PNEUMATIC WHEELS
OTHER THAN AS RECOMMENDED
CAN BE DANGEROUS. If in doubt
the factory for information.

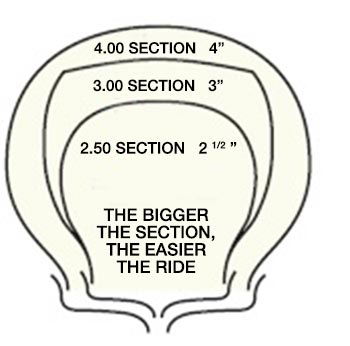

tyre diagram

tread 6

320x80
128/8x31/8”

350X6KNO
-PWB20

Cone
cone

20 X 60
20mmX23/8”

5/8”, 3/4”

140kg

310lb

110kg

240lb

350X6KNO
-PWA20

Plain

plain

20 X 60
20mmX23/8”

5/8”, 3/4”, 1”

tread 7

400x100
16x4”

400X8KNO
-PWB10

Cone
cone

1” X 107
1x41/4”

*5/8”, 3/4 or 20mm

200kg

440lb

180kg

395lb

* ID of bearing is reduced by inserting flanged nylon bush into
the standard bearing- add 4mm to hub width



400X8KNO
-PWA10

Plain

plain

1” X 105
1x41/8”

All rights reserved Fallshaw Pty Ltd 2008




Copyright © 2008 Castors & Industrial Products | Contact Us
