Turntables

Turntables and Turntables on stands
TURNTABLES ON STANDS

PALRING11S3

1100mm diametre galvanized palring (see specifications of palring below)

300mm high stand (painted enamel finish)

The stand incorporates a rotation lock that is self-locking in the rest position with an easy release foot pedal

No fork sockets

PALRING11S5

1100mm diametre galvanized palring (see specifications of palring below)

500mm high stand (painted enamel finish)

The stand incorporates a rotation lock that is self-locking in the rest position with an easy release foot pedal

No fork sockets

PR11-500FS

1100mm diametre galvanized palring (see specifications of palring below)

500mm high stand (painted enamel finish)

No Rotation lock

Fork sockets

PR11-500FF

1100mm diametre galvanized palring (see specifications of palring below)

500mm high stand (painted enamel finish)

The stand incorporates a rotation lock that is self-locking in the rest position with an easy release foot pedal

Fork sockets

All turntables on stands have a captive centre pivot and are painted in safety yellow enamel finish

Paldiscs can also be supplied on stands instead of Palrings (custom manufactured option)

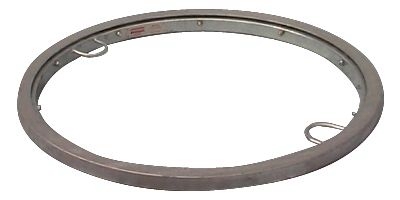

TURNTABLE PALRING
palring - turntable

The Palring is an affordable, easy to use turntable, ideal for use alongside conveyor systems, feeding hoppers, extruders, process and production equipment. The Palring is tough and won't 'bind' or tighten up under load.

Galvanized finish

2000Kg capacity

60mm high

60Kg unit weight

Australian manufactured

PALRING1100 1100mm diametre Palring, includes carry handles
PALRING1100L 1100mm diametre Palring with bolt down lugs
PALRING11C 1100mm diametre captive Palring  (centre connection), supplied with bolt down lugs
PALRING900 900mm diametre Palring, no handles or lugs
PALRING9L 900mm diametre Palring with bolt down lugs
PALRING9C 900mm diametre captive Palring  (centre connection), supplied with bolt down lugs
STAINLESS For stainless steel or larger diametre Palrings, please contact us

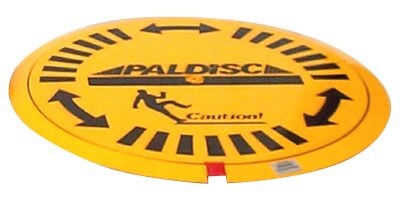

PALDISC
paldisc - turntable

The Paldisc is unique to the Safetech range and provides rotation of up to 2000Kg with an ultra low turntable height of only 24mm. Ideal for use with hand pallet trucks.

22mm high

1100mm diametre

Available with or without a ramp

100Kg unit weight

Made in Australia

PALDISCWR
1100mm diametre Paldisc supplied with ramp suited for working with a pallet truck/jack - 1240mm diametre with ramp
PALDISCSQE 1100mm diametre Paldisc with square edge (no ramp) - 22mm high without ramp
TLUG Tyne lug for forklift relocation (can be added to Paldisc as an optional extra)
ELEVER Edge lever is a tool that assists in lifting the Paldisc

Turntables are a simple aid to safer manual handling and eliminate the need for stretching when loading or unloading product.

Ideal for areas where more complex lifting equipment can’t be used turntables are inexpensive and durable.

Goods are simply placed on the turntable and then manually rotated to avoid stretching across the load.

Palrings and Paldiscs can be supplied with stands or they can be fitted to the top of a Safetech Scissor Lift table.
