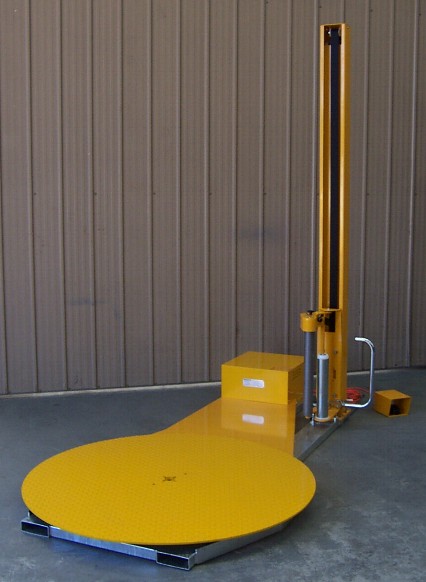

SERIES 3 EASY WRAPPER MANUAL |
| Specifications |
|
|
POWER: |
|
240 Volt single phase |
ROTATION SPEED: |
|
9 rpm |
LOAD CAPACITY: |
|
2000 kg |
SHIPPING WEIGHT: |
|
250 kg |
SHIPPING DIMENSIONS: (with mast lowered) |
|
3000 long 1400 wide 450 high |
MAST HEIGHT: |
|
2465 mm |
| WRAPPING HEIGHT: |
|
2175 mm |
| TURNTABLE HEIGHT: |
|
110 mm |
| |
|
|
|
| Features |
|
|
|
|
Large diameter chequerplate turntable. |
|
|
Fold down mast for transport. |
|
|
Fork sockets for easy relocation. |
|
|
Galvanised base assembly. |
|
|
Robust mechanism |
|
| Options |
|
|
|
|
Soft start or variable speed. |
|
|
Three phase motor and low-voltage controls |
|
|
Kit to allow hand rolls to be used |
| |
|
 |
|
| |

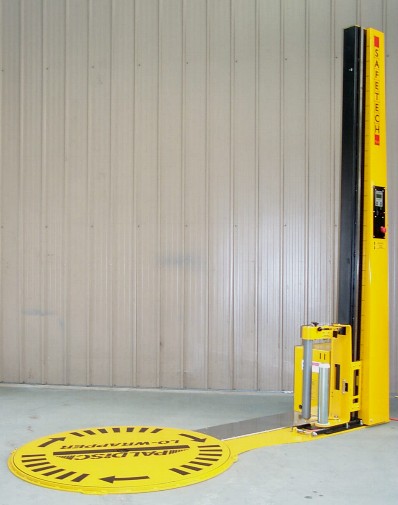

SERIES 3 EASY WRAPPER SEMI AUTOMATIC |
| Specifications |
|
|
POWER: |
|
240 Volt single phase |
ROTATION SPEED: |
|
9 rpm |
LOAD CAPACITY: |
|
2000 kg |
SHIPPING WEIGHT: |
|
300 kg |
SHIPPING DIMENSIONS: (with mast lowered) |
|
3300 long 1400 wide 670 high |
MAST HEIGHT: |
|
2710 mm |
| WRAPPING HEIGHT: |
|
2600 mm |
| TURNTABLE HEIGHT: |
|
110 mm |
| |
|
|
|
| Features |
|
|
|
|
Turntable return to start |
|
|
Software storage for up to 5 user set wrapping patterns |
|
|
Half, full and top sheet cycles. |
|
|
Improved mechanical stretch provides constant tension independent of roll diameter. |
|
|
Quick release lever to disengage tensioner. |
|
|
Fork tyne sockets for easy relocation. |
|
|
Large diameter chequerplate turntable. |
|
|
Fold down mast for transport. |
|
|
Galvanised base assembly, robust mechanism |
|
| Options |
|
|
|
|
Photo eye available for pallet height detection |
|
|
Soft start or variable speed. |
|
|
Three-phase motor and low-voltage controls. |
|
|
3200 mm extended mast |
|
|
Kit to allow hand rolls to be used. |
| |
|
|
|
