Ecolift 50 Binlifter (50Kg)
- Safe lifting capacity of 50kg
- Lifts 80L, 120L, 140L and 240L bins
- Simple manual crank handle operation
- Fits through internal doors
The Ecolift 50 is a manual crank handle operating unit that aids in the lifting and emptying of wheelie bins into dumper bins. The Ecolift 50 is the ideal unit for anybody who has to lift light weights infrequently. Designed to lift up to 50kg at a time, the Ecolift is perfect for schools, small offices and local councils that dispose of paper waste and are required to empty the wheelie bin once or twice a day. The Ecolift eliminates all lifting from the process of empting wheelie bins into larger dumper bins. The bin is lifted by simply manually rotating the crank handle. The user is protected against costly back injuries. The Ecolift 50 is designed and manufactured in Australia using the highest quality components. The dimensions of 1050L x 850W x 860H ensure easy storage and the Fallshaw castors allow for effortless mobility. The frame has a powder coated finish for weather resistance.
Product code:
Ecolift Binlifter 50 Standard - 1500mm

Manual Binlifter 100 (100Kg)
- Safe lifting capacity of 100kg
- Lifts 80L, 120L, 140L and 240L bins (manual adjustment)
- Hydraulic hand pump operation (no sparks)
- Fits through internal doorways
The Manual Binlifter 100 is designed for manouverability. The small foot print and light weight, combined with the spark free manual operation make it perfect for building sites. The lift mechanism is a full swing operation ( as opposed to the lift and tilt operation of the Ecolift 50) - which enables the compact size and light weight, but which is recommended for trained users away from the general public for safety reasons.
Product codes:
BLHP1500
Manual Binlifter 100 - for 1500mm high bins
BLHP1800
Manual Binlifter 100 - for 1800mm high bins

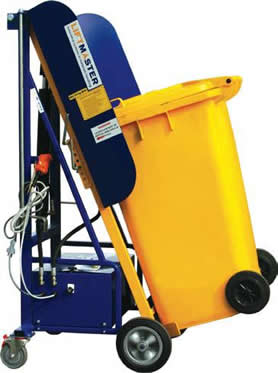

Powered Binlifter 150 (150Kg)
- Safe lifting capacity of 150kg
- Lifts 80L, 120L, 140L and 240L bins (manual adjustment)
- Fits through internal doorways
- 240V Electric operation or
- Mobile rechargable 12V operation
The Powered Binlifter 150 is designed for manouverability. The small foot print and light weight, combined with the 240V electro-hydraulic operation make it perfect for heavier bins on building/industrial sites. The lift mechanism is a full swing operation ( as opposed to the lift and tilt operation of the Ecolift 50) - which enables the compact size and light weight, but which is recommended for trained users away from the general public for safety reasons.
Product codes:
BLEH12/1500
Powered Binlifter 150 - 12V battery - for 1500mm high bins
BLEH12/1800
Powered Binlifter 150 - 12V battery - for 1800mm high bins
BLEH240/1500
Powered Binlifter 150 - 240V mains - for 1500mm high bins
BLEH240/1800
Powered Binlifter 150 - 240V mains - for 1800mm high bins

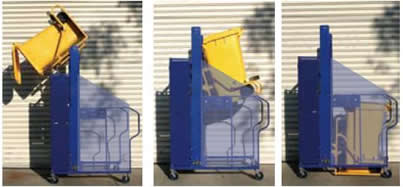

Simplicity Plus 150 Binlifter (150Kg)
- Safe lifting capacity of 150kg
- Lifts 80L, 120L, 140L and 240L bins
- Simple push button operation
- 12V rechargeable battery
- Braking castors for stability
The Simplicity Plus 150 is a push button unit that aids in the lifting and empting of wheelie bins into dumper bins. The Simplicity Plus 150 is the ideal unit for medium weight and frequent lifts. The push button operation eliminates all of the manual handling and associated risk. Designed to lift up to 150kg at a time, the Simplicity Plus is perfect for larger offices, apartment blocks, waste disposal companies and event organizers that are required to empty the wheelie bin several times in a day. It is a simple process of pushing the button to lift and empty the bin in a 40 second cycle. It operates on a 12 volt rechargeable battery which ensures the unit is completely portable.
The Simplicity Plus 150 is designed and manufactured in Australia using the highest quality components. The unit is fitted with Fallshaw castors to allow for effortless mobility. The frame has a powder coated finish for weather resistance.
Product codes:
SIMPLUS150FD1500
Simplicity Plus 150 for 1500mm high bins
SIMPLUS150FD1800
Simplicity Plus 150 for 1800mm high bins
SIMPLUS150RDSimplicity Plus 150 for recessed docks

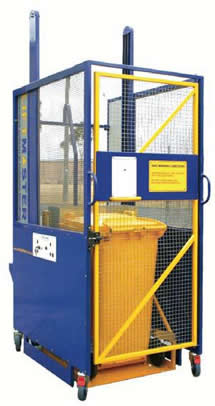

Universal 250 Binlifter (250Kg)
- Safe lifting capacity of 250kg
- Lifts 80L, 120L, 140L and 240L bins (automatic adjustment)
- Simple push button operation
- 12V rechargeable battery with Smart Charger (enables the battery to charge whilst the binlifter is operating from mains power)
The Universal 250 is a push button unit with a complete safety cage that aids in the lifting and empting of wheelie bins into dumper bins. When employee safety is paramount the Universal 250 is the model for you. Completely Australian Standards compliant, the safety cage and extra guarding adds extra protection for users. The Universal 250 is the ideal unit for heavy weight and regular lifts. The push button operation eliminates all manual handling and associated risk. Designed to lift up to 250kg at a time, the Universal 250 is perfect for supermarkets, retail outlets, waste disposal companies and event organizers that are required to empty the wheelie bin numerous times throughout the day. It is a simple process of pushing the button to lift and empty the bin in a 40 second cycle. It operates on a 12 volt rechargeable battery (which ensures the unit is completely portable) with a SmartCharger that allows the unit to run on mains power while the battery is charging (or be permanently mains powered).
The Universal Binlifter has been designed and manufactured in Australia to Australian safety standards. The design ensures the entire process is straight forward, effortless and dependable. Introduction of the module is supported with an installation and operation DVD and an operating manual. Onsite training can also be arranged.
Universal Binlifter 250 features:
- Australian Made
- NATA load tested & certified
- Empty cycle time - 40 seconds
- Load Capacity - 250kg
- Storage Height - 2550mm
- Width - 900mm
- Power source - 12 V Gel battery with Smart Charger
- Bulk bin compatability - Up to 1800mm height flat dock recessed dock facility
- Operational Height - 3100mm
- Depth - 1400mm
- Weight - 225kg (excluding battery)
- Wheelie Bin Compatibility - 80L, 120L, 140L & 240L
Same model can be converted to either flat dock or recess dock
Product codes:
UBL250FD1500
Universal Binlifter 250 Flat dock to suit 1500mm waste bins
UBL250FD1800
Universal Binlifter 250 Flat dock to suit 1800mm waste bins
UBL250RD
Universal Binlifter 250 Recessed dock
