Heavy Castors

W Series



The quality standard

3 year warranty
Black painted fork
Excellent design and performance
Wheels with plain bore and precision bearings have a 20mm bore which

is reduced to 1/2" with axle bush

Wheels with asterix (*), made in Australia



fork options

Mount

Type


fork options diagram

Fork Size

150

200

150

200

150

200

Mount Height

202

254

202

254

202

254

Swept Radius

112

139

not applicable

- no swivel

167
167


wheel options

hub width
Hub Width x Bore

mm

bearing type


Bearing
Type

load capacity
Load
Capacity

kg

diameter width
Diameter
x Width

mm

tyre material


Tyre Material



Fork Type

fork type

Plate
Swivel

Plate
Fixed

Plate Swivel

Total Brake

Wheel Only

/WPP

/WPF

/WPPTB
60 x 20
Plain
400Kg
150 x 50

Cast Iron

WCI150

WCI150/WPP

WCI150/WPF

Not available

brakes don't work on

cast iron wheels

60 x 20

Precision

600Kg

150 x 50

Nylon

*

WNQ150

WNQ150/WPP

WNQ150/WPF

WNQ150/WPPBR
60 x 20
Precision
600Kg
200 x 50

WNQ200

WNQ200/WPP

WNQ200/WPF

WNQ200/WPPBR

60 x 20

Precision

600Kg

150 x 50

Polyurethane/nylon

*

WUQ150

WUQ150/WPP

WUQ150/WPF

WUQ150/WPPBR
60 x 20
Precision
600Kg
200 x 50

WUQ200

WUQ200/WPP

WUQ200/WPF

WUQ150/WPPBR

60 x 20

Precision

750Kg

150 x 50

Polyurethane on cast iron
(95 shore A)

XUQ150

XUQ150/WPP
XUQ150/WPF
XUQ150/WPPBR
60 x 20
Precision
750Kg
200 x 50
XUQ200
XUQ200/WPP
XUQ200/WPF
XUQ200/WPPBR

60 x 20

Precision

400Kg

150 x 50

High resilient blue rubber

OBQ150

OBQ150/WPP

OBQ150/WPF

OBQ150/WPPBR

60 x 20
Precision
400Kg
200 x 50
OBQ200
OBQ200/WPP
OBQ200/WPF
OBQ200/WPPBR



All rights reserved Fallshaw Pty Ltd 2008




X Series

Heavy Duty Kingpin Castors
Drop forged for maximum strength
Zinc plated
3 year warranty


Wheels have 20mm bearing which is reduced to 1/2" with axle bush

fork options

accessories

Mount

Type

Kingpin Construction

These are accessories which can be field installed to the

standard castor range to offer extra performance such as

braking or swivel locking

Fork Size

100

125

150

200

100

125

150

200

100

125

150

200

100

125

150

200

Mount Height

143

167

193

257

143

167

193

257

143

167

193

257

143

167

193

257

Swept Radius

95

108

137

162

not applicable

- no swivel

219

242

266

291

95

108

137

162

wheel options

hub_width
Hub_Width

x Bore

mm

bearing type

Bearing
Type





load capacity
Load

Capacity

kg

diameter width
Diameter

x Width

mm

tyre material



Tyre Material

choosing wheels

Fork typefork type

Plate
Swivel

Plate
Fixed

Plate face brake

face brake

Plate directional lock

swivel lock

Wheel Only

/XZP

/XZF

/XZPBR

/XZPDL

62 x12.7

Ball

450kg

102x48

Cast Iron

(145 Brinell)

XCQ100
XCQ100/XZP
XCQ100/XZF
XCQ100/XZPBR
XCQ100/XZPDL

62 x12.7

Ball

590kg

127x48

XCQ125
XCQ125/XZP
XCQ125/XZF
XCQ125/XZPBR
XCQ125/XZPDL

62 x 12.7

Ball

630kg

152x48

XCQ150
XCQ150/XZP
XCQ150/XZF
XCQ150/XZPBR
XCQ150/XZPDL

62 x 12.7

Ball

820kg

203x50

XCQ200
XCQ200/XZP
XCQ200/XZF
XCQ200/XZPBR
XCQ200/XZPDL

62 x 12.7

 Roller

360kg

102x50

V Groove Cast Iron

22mm wide groove 10.8mm deep
XGR100
XGR100/XZP
XGR100/XZF
XGR100/XZPBR
XGR100/XZPDL

62 x 12.7

Roller

360kg

127x50

XGR125
XGR125/XZP
XGR125/XZF
XGR125/XZPBR
XGR125/XZPDL

62 x 12.7

 Roller

450kg

152x50

XGR150
XGR150/XZP
XGR150/XZF
XGR150/XZPBR
XGR150/XZPDL

62 x 12.7

Ball

600kg

100x50

Poly/Cast Iron

(95 Shore A)

XUQ100
XUQ100/XZP
XUQ100/XZF
XUQ100/XZPBR
XUQ100/XZPDL

62 x 12.7

Ball

800kg

125x50

XUQ125
XUQ125/XZP
XUQ125/XZF
XUQ125/XZPBR
XUQ125/XZPDL

62 x 12.7

Ball

1000kg

150x50

XUQ150
XUQ150/XZP
XUQ150/XZF
XUQ150/XZPBR
XUQ150/XZPDL

62 x 12.7

Ball

1000kg

200x50

XUQ200
XUQ200/XZP
XUQ200/XZF
XUQ200/XZPBR
XUQ200/XZPDL

V Series



Kingpinless Heavy Duty Castors
Durable heat treated steel construction
Zinc plated
3 year warranty
Precision bearings in wheels
Trionix High Impact Polymer wheels for tough applications

(0 - 85°C temp range

VUQ & VXQ wheels have a 30mm bearing ID. All bearing ID's are reduced to 20mm with an axle bush )



fork options



Mount

Type

Kingpinless head race contruction

Wheel diametre (mm)

200
250
200
250
200
250
200
250

Mount Height

(mm)

267
318
267
318
267
318
267
318

Swept Radius

(mm)

165
190

not applicable

- no swivel

317
353
165
190

wheel options

hub width bore
Hub_Width

x Bore

mm

bearing type Bearing

Type

load capacity
PrecLoad

Capacity

kg

diameter width
Diameter

x Width

mm

tyre material
Tyre

Material

Fork Type

fork type

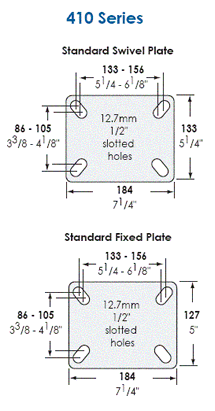

Plate
Swivel

410NX08428S.tif

Plate
Fixed

410NX08428R.tif

Accessory:
Face brake

Accessory:
Swivel lock

Wheel Only

89 x 20
Precision ball
2450Kg
200 x 75

Trionix ™

High Impact polymer

(78 - 82 shore D)

VXQ200
VXQ200/VZP
VXQ200/VZF
VXQ200/VZPBR
VXQ200/VZPDL
89 x 20
Precision ball
2450Kg
250 x 75
VXQ250
VXQ200/VZP
VXQ250/VZF
VXQ250/VZPBR
VXQ250/VZPDL

89 x 20
Precision ball
2000Kg
203 x 75

Polyurethane on cast iron (95 Shore A)

VUQ200

VUQ200/VZP
VUQ200/VZF
VUQ200/VZPBR
VUQ200/VZPDL

89 x 20
Precision ball
2000Kg
254 x 75

VUQ250

VUQ250/VZP
VUQ250/VZF
VUQ250/VZPBR
VUQ250/VZPDL
