Elevating Equipment

300Kg capacity unit  - WSP300A

350Kg capacity unit (double scissor) WSP350A

800Kg capacity unit - WSP800A

Hydraulic Scissor Lift Tables provide a safe and efficient method of lifting and transporting loads in the work place.

Built with safety in mind, features include a well balanced sturdy construction and foot operated brakes.  Manufactured in China by Xilin, the largest pallet truck manufacturer in the world!

Available in the following capacities: 150Kg, 300Kg, 350Kg, 500Kg and 800Kg.

WSP150A
Platform size: 700mm long x 450mm wide
150Kg unit - maximum lift height 740mm, lowered height 225mm - 46Kg nett weight

WSP200PA

Platform size: 1000mm long x 500mm wide

200Kg unit - maximum lift height 1000mm, lowered height 340mm

Lockable solid rubber castors

60Kg nett weight

WSP300A
Platform size: 855mm long x 500mm wide
300Kg unit - maximum lift height 900mm, lowered height 340mm - 82Kg nett weight

WSP350A
Platform 940mm long x 500mm wide
350Kg unit - maximum lift height 1300mm (double scissor), lowered height 340mm - 120Kg nett weight

WSP500A
Platform size: 855mm long x 500mm wide
500kg unit - maximum lift height 900mm, lowered height 340mm - 87Kg nett weight

WSP800A

Platform size: 1000mm long x 515mm wide
800Kg unit - maximum lift height 1000mm, lowered height 420mm - 115Kg nett weight

WSP1500A

Platform size: 1220mm long x 610mm wide
1500Kg unit - maximum lift height 1000mm, lowered height 420mm - 135Kg nett weight

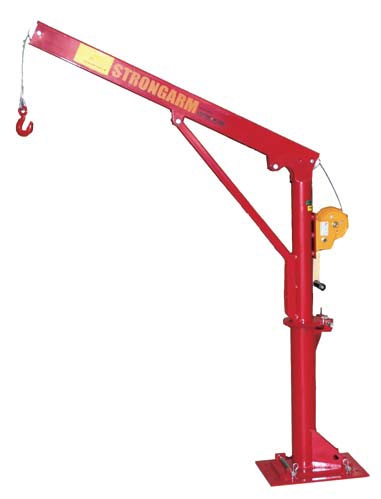

Strongarm Hoist

The Strongarm S4HW is designed to be statically bolted to a concrete floor such as a loading bay.

Hand winch is low geared to ensure loads can be raised without too much effort.

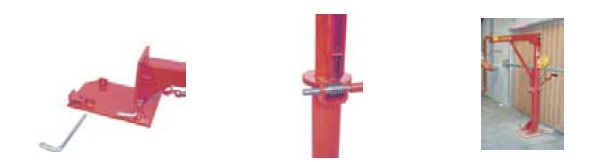

Geared hand slewing of the mast allows for controlled rotation of the mast, giving precise positioning of the load.

Fold down when you have finished to stop people bumping their heads.

Maintenance

For a moderately used machine, the following schedule should be carried out at a maximum 12-month interval:

Grease both nipples fitted to the cable pulleys in the lifting arm. Grease the gear teeth on the worm wheel at the point of interference with the slew gear.

Grease the drive gear/s and pinion in the hand winch where applicable.

Product code: S4HW

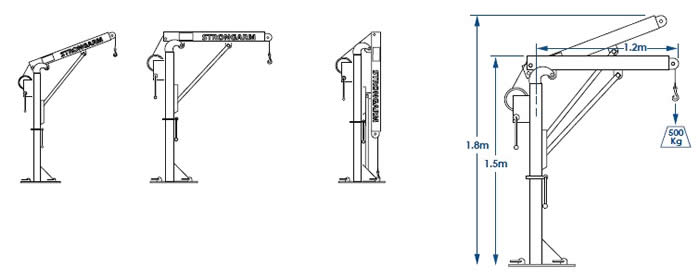

Two lift positions for greater flexibility.

Get that little extra bit of lift height by raising the boom (raise prior to lifting the load)

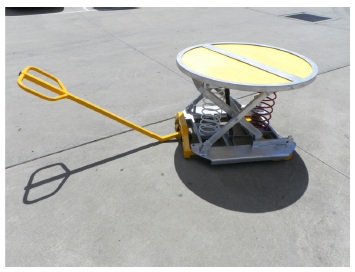

New Series 3 Turntable Palift (galvanized) - code PTG3

New Series 3 Square Top Palift (Painted base with galvanized top) - Code PST3

New mobile base for palift - Code PMBD

New Series 3 range....

A new Load Safe profile. The footprint of the Series 3 Palift is entirely contained within the turntable to prevent contact injury and to place the operator in the most ergonomically desirable position

Easy mobility option. Lightweight relocation dolly makes manually shifting Palift simple and safe.

Improved forklift tyne sockets for easier access.

PALIFTS - TURNTABLE, SQUARE TOP, MOBILE

• 1100mm diametre turntable OR
• 1040mm x 1060mm square top
• 2000Kg capacity
• 230mm compressed height
• 700mm extended height
• 160Kg in weight
• Fully galvanized finish
• 3 years warranty on unit, springs life time warranty
• Built in turntable allows load to rotate (on turntable unit only)
• Robust contstruction
• Adjustable feet for uneven floors
• Fork tynes for ease of relocation
• Available with castors and pull handle
• Also available in a lite spring unit, palift lite

The Palift resembles a scissor lift table in appearance.  It has a top deck and a base connected by a pair of scissor legs.  The levelling mechanism is a set of springs and is set to the weight and height (the density) of the product.  From then on the levellers work automatically and raise or lower as the weight changes.  The load setting is a simple process and for most users springs never have to be changed.  A shock absorber is used to prevent any bounce.  Australian manufactured Palifts are supplied with a standard galvanized finish.

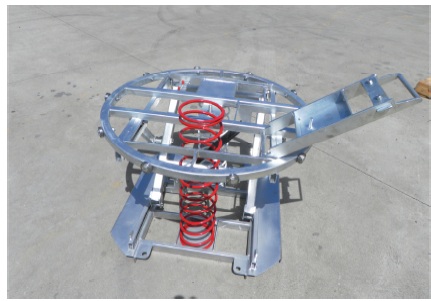

PTG3 - Turntable Palift (Galvanized)

PTP3 - Turntable Palift (Painted emerald green)

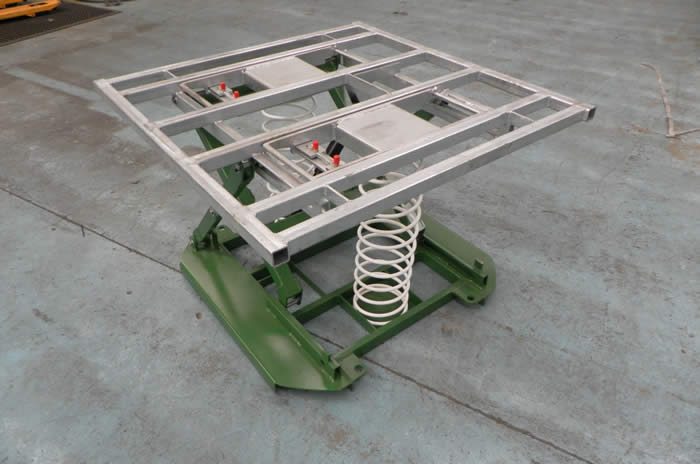

PST3 - Square Top Palift (Painted base with galvanized top)

MPSTBSQT2 - Square Top Palift Maxi (2500Kg SWL - 4 spring combination)

MPSTBTTT2 - Turntable Palift Maxi (2500Kg - 4 spring combination)

PSTBSQTL - Square Top Palift LIte (150Kg - 250Kg weight range)

PSTBTTTL - Turntable Palift LIfte (150Kg - 250Kg weight range)

PMBD - Mobile base with dolly

PMDB - Mobile base frame

PMDH - Mobile dolly handle

PRL3 - Palift turntable rotation lock

Code: DC250

• 250Kg capacity
• 895mm x 480mm platform size
• 360mm minimum height
• 845mm maximum height
• 20 Second elevation time
• 240 Volt plug pack
• Powdercoated grey
• Weighs 43Kg
• Non marking grey rubber castors

Code: DCD100

• 100Kg capacity
• 895mm x 480mm platform size
• 500mm minimum height
• 1500mm maximum height
• 20 Second elevation time
• 240 Volt plug pack
• Powdercoated grey
• Weighs 50Kg
• Non marking grey rubber castors

The DC Trolleys offer 100 – 250Kgs of lifting force at the push of a button.  It eliminates the

need for pumping and provides users with a safe, clean, powered lift that is quiet and quick.

The DC Trolleys use a linear actuator and a Safetech developed battery box that can power

up to 150 lifts perday (depending on the weight lifted).

Ideal for office or factory use the BATTERY POWERED POWERLIFT TROLLEY has been designed to provide safe, mobile lifting at the press of a button. It uses an electric linear actuator rather than hydraulics to power the lift which makes the units quiet and clean to operate without any risk of hydraulic fluid leaks or contamination. The non-marking polyurethane tyres are rounded to enhance mobility and manoeuvrability.

The actuator is powered by two sealed batteries and holds more than enough charge for a full days work.  The battery can power up to 150 lifts, depending on how the trolley is used.  If you have a very heavy-duty cycle or have continuous shifts, a second battery box can be purchased.

Great care has been taken to ensure that the Powerlift is comfortable and safe to use.  The handle height suits the Australian population and is at the right angle to allow the user to stride out comfortably.  The width to height ratio ensures good stability.  Spacing between the legs eliminates dangerous shear points.

Rated at IP66, the mechanism can withstand a powerful jet of water and is dust tight.  In hospitals and food preparation areas, where wash-down routines are important, the battery box, which is not protected, can be removed in seconds.

The DC 250 Powerlift is designed and manufactured in Australia and extensive support and service facilities are available to ensure a long life and trouble-free performance.
