Electrodrive bedmovers & tugs

Move hospital beds safely and efficiently.......

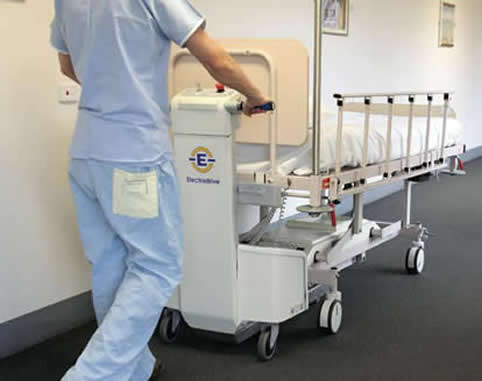

The Gzunda Bed Mover allows one person to effortlessly move heavy hospital beds. The motorised unit operates equally well with or without a patient – simplifying

the task of moving beds or patients between wards, departments, or to and from theatre. This allows the driver to focus on the needs of the patient during transport.

With a capacity of 500kg, the silent motorised unit is able to move a hospital bed up or down ramps, over carpet, into lifts, and around tight corners with minimal effort

by the operator. TheGzunda’s compact design, effortless maneuverability and detach-ability allows for safe and efficient management of a fleet of beds or trolleys

within a healthcare environment.

Typical applications include:

• Moving hospital beds with or without patients between rooms and wards
• Transporting patients to and from high traffic departments e.g. emergency, radiology and theatre
• Moving linen

The Gzunda is Australian made to provide the highest quality and suitability for your application.

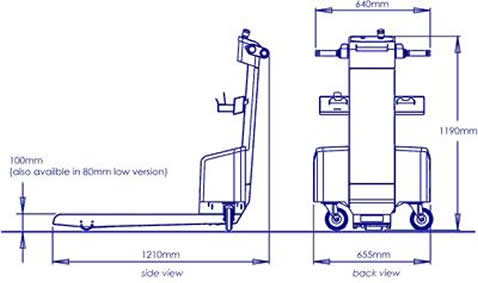

Electrodrive Gzunda Bedmover	GZ100
Dimensions: Capacity:   500Kg Height:      1190mm Length:     1210mm Width:        655mm Weight:      150Kg Voltage:     24V Range:      Aapprox. 10 km (depending on workload: slope, patient weight, etc)

Move smaller trolleys or wheeled objects safely and efficiently....

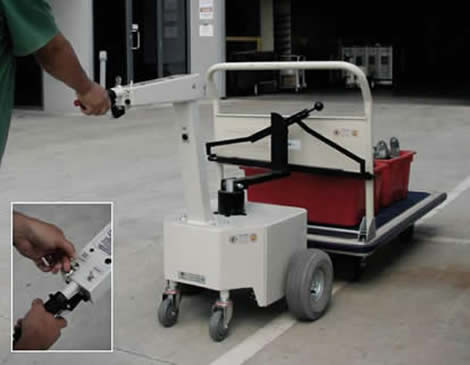

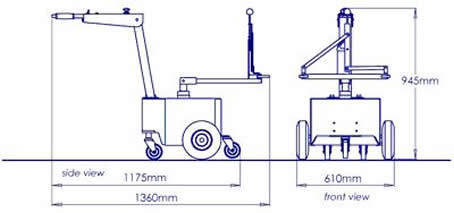

Designed with smaller weights and spaces in mind (up to 500kgs), the Tug Mini is ideal for effortlessly moving lighter duty trolleys (such as medical or

document trolleys) within an institutional or industrial setting. The Tug Mini attaches easily to your trolley, allowing its strong electric motor to move heavy or

awkward loads. This both increases workplace productivity, and minimises the back and shoulder strain often associated with moving heavy objects. The

Tug Mini features easy to use tiller controls which allow the operator to walk in front of the heavy load, providing the operator maximum forward vision and

reducing the possibility of accidents when negotiating turns.

Typical applications include:

• Moving document trolleys around universities
• Transporting medical carts around hospitals
• Moving bins or linen trolleys

The Tug Mini incorporates all of the features you would expect in an Electrodrive product, including a programmable controller, forward and reverse drive

models, variable speed control, automatic electromagnetic park brakes and emergency brake release. As with all Electrodrive equipment, the Tug Mini

comes with a comprehensive 12 month warranty, including parts and labour.

Move heavy wheeled objects safely and efficiently....

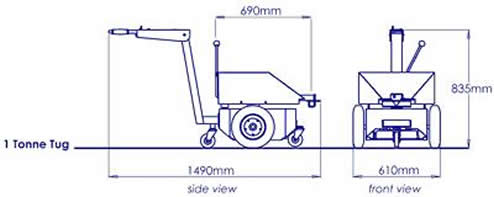

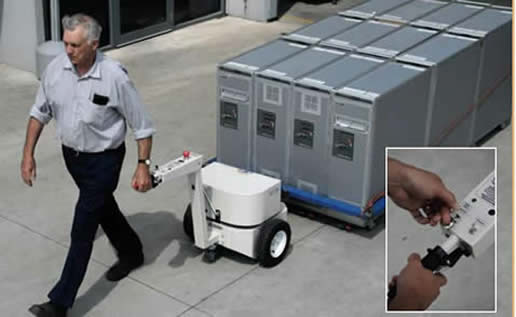

The Tug Classic allows a single operator to move heavy or awkward trolleys safely & efficiently. Utilising a powerful electric motor, the Tug Classic is

available in capacities of 1, 2, or 3.5 tonne. The Tug Classic minimises operator effort while increasing work place efficiency - often allowing the job of

two or three people to be done by one. The Tug Classic hitches easily to your load, and is controlled with an easy to use tiller handle. This allows the

operator to walk in front of the heavy load during movement; providing the operator maximum forward vision and reducing the possibility of accidents

when negotiating turns. An articulated body increases the maneuverability further still, allowing for tighter turning.

Typical applications include:

• Moving trolleys through airports, factories or institutions
• Transport of stillages around a facility
• Moving specialist equipment

The Tug Classic comes standard with automatic electromagnetic park braking, forward and reverse drive controls, variable speed control, lever operated

throttle, a high capacity programmable controller, and emergency brake release. As with all Electrodrive equipment, the Tug Classic comes with a comprehensive

12 month warranty, including parts and labour.

Move boxes or documents easily and efficiently....

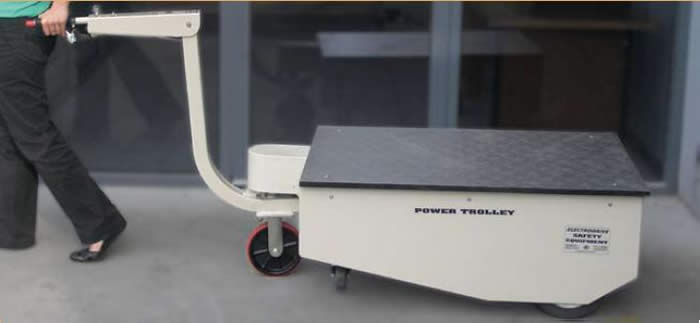

The POWER TROLLEY is a battery powered mobile work unit for handling loads up to 500kg in weight. It is designed to eliminate operator effort when

transporting heavy objects. It is especially useful in eliminating back strain due to carrying heavy items, or pushing heavy trolleys. Customised tops are

available to specifically suit your load. The latest model of POWER TROLLEY includes the latest developments in Australian made D.C. geared motors

with automatic electromagnetic park braking, as well as a high capacity programmable controller.

Features of the vehicle include:

• Quiet smooth operation
• Ease of handling
• No licence required
• High manoeuvrability
• Low maintenance
• Ability to handle 500Kgs loads

All POWER TROLLEYS are Australian made to provide the highest quality and suitability for your application. Full product training and service contracts are available.
