Drum Handling

Tilting Drum Stand

Product code: NF10
Load capacity 250Kg
Suits drum size: 210 Litre
Unit weight: 14.5Kg (supplied flat packed)
Castors: 100mm diameter x 35mm wide white nylon, swivel bolt hole
Wheels 125mm diameter x 35mm wide white nylon
Features:

When stand is in the horizontal position, handles can be retracted.
Plastic hand grips assist operator when drums are being loaded or transported

Drums can be decanted from horizontal position

Description: Tilting Drum Stand

Drum Dolly

Product code: DD205
Load capacity 225Kg
Suits drum size: 200 Litre
Inside diametre of rim: 605mm
Castors: Four x 75mm black nylon swivel nylon castors (Fallshaw brand)
Construction: Mild steel, gal painted finish, made in Brisbane
Features: 205 litre drum sits upright in dolly. Dolly can be wheeled around sorkshop floors with ease
Description: Steel drum dolly



Drum Handling Forklift Attachments

SDL1 Drum Lifter

Designed for standard 205 litre steel drums, the fully automatic clamping action enables safe and precise placement of drums without the operator having to eave the drivers seat. The drum is gripped by pusing the arms against the drum centre and driving forward with the forklift. The The arms will engage around the drum and lock under the rolling hoop when raised. The heavier the load, the tighter the grip. To release,  lower the drum onto the ground and continue to lower the forks whilst reversing the forklift. the SDL2 will handle either a single drum or two drums. Zinc plated finish.

Code

Number of

drums

SWL
Fork pocket centres
Fork pocket size
Load centre
Unit weight
SDL 1
1
500Kg
325mm
165mm x 65mm
1340mm
62Kg

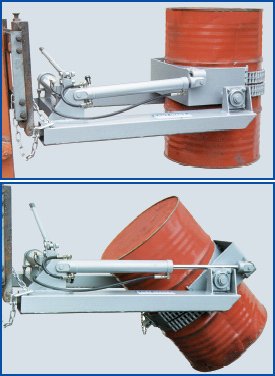

BGN Drum Lifters

Drum handling made easy. A good field of vision allows the operator to continually observe the drums being handled.  The operator does not leave the drivers seat. The unique beak design provides a high clamping force, even when travelling over uneven ground. Suitable for standard 205 litre steel and plastic drums and available as a single or a two drum unit. A contoured rest acts at a point low enough down the drum to prevent damage to the drum and its labelling. Zinc plated finish.



Code

Number of

drums

SWL
Fork pocket centres
Fork pocket size
Load centre
Unit weight
BGN 1
1
1000Kg
250mm
185mm x 60mm
1210mm
72Kg
BGN 2
2
1500Kg
600mm
185mm x 60mm
1250mm
95Kg

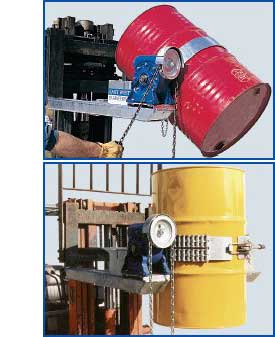

DL1000 Drum Lifter

The DL1000 is the safest drum lifter available, with the drum being transported with 100% security.  The drum is secured by a chain belly strap which is operated by an eccentric lock, which is then also secured by an additional securing pin.  Zinc plated finish



Code

Number of

drums

SWL
Fork pocket centres
Fork pocket size
Load centre
Unit weight
DL1000
1
1000Kg
335mm
165mm x 65mm
1160mm
60Kg
