Central Locking Castors/Electronic Braking Castors
Trinity EBC Castors/Natural Directional Lock Castors

Central locking castors

*Used on hospital beds where one pedal needs to activate multiple brakes

*Precision wheel bearings

*Excellent design and performance



*Standard configuration on hospital beds with four castors is a set of 2 directional lock and 2 total brake castors.  A set includes two transmission peds with three opositions ie: DL, Neutral and TB.

Mount type
Fork size
100
125
150
100
125
150
100
125
150
100
125
150
100
125
150
100
125
150
Mount height
139
165
190
139
165
190
139
165
190
139
165
190
139
165
190
139
165
190
Swept radius
91
103
113
91
103
113
91
103
113
91
103
113
91
103
113
91
103
113

Kg

Diametre x Width

mm

Single or Twin Wheel

Tyre material

Precision

Q ball

100Kg 100 x 32

TPE non marking rubber

MJQ100G

MJQ100G

/CZL

MJQ100G

/CZLTB

MJQ100G

/CZLDL

MJQ100G

/CZS

MJQ100G

/CZSTB

MJQ100G

/CZSDL

SET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers MJQ100GCLLSET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers MJQ100GCLSSET

Precision

Q Ball

100Kg 125 x 32
MJQ125G

MJQ125G

/CZL

MJQ125G

/CZLTB

MJQ125G

/CZLDL

MJQ125G

/CZS

MJQ125G

/CZSTB

MJQ125G

/CZSDL

SET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers MJQ125GCLLSET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers MJQ125GCLSSET

Precision

Q ball

100Kg 150 x 32

Grey non marking rubber

QTQ150G

QTQ150G

/CZL

QTQ150C

/CZLTB

QTQ150G

/CZLDL

QTQ150G

/CZS

QTQ150G

/CZSTB

QTQ150G

/CZSDL

SET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers QTQ150GCLLSET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers QTQ150GCLSSET

Precision

Q ball

100Kg 200 x 32
QTQ200G

QTQ200G

/CZL

QTQ200G

/CZLTB

QTQ200G

/CZLDL

QTQ200G

/CZS

QTQ200G

/CZSTB

QTQ200G

/CZSDL

SET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers QTQ200GCLLSET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers QTQ200GCLSSET

Precision

Q Ball

100Kg 150 x 32
CUQ150GT

CUQ150GT

/CNL

CUQ150GT

/CNLTB

CUQ150GT

/CNLDL

CUQ150GT

/CNS

CUT150GT

/CNSTB

CUQ15GT

/CNSDL

SET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers CUQ150GTCLLSET

Bed set = 2 x TB, 2 x DL & 2 x

Transmission levers CUQ150GTCLSSET



Accessories:

Double ended control pedal

SPPEDCL(L) - Left hand side

SPPEDCL(R) - Right hand side

castors cas


Automatig

Automatic braking for hospital beds


Steer from both ends of the bed


Push button and foot pedal control

Electric Brake Control improves safety and makes it simple to lock and control the bed.


It has been reported that in the 65+ age group, fall rates are as high as 12 per 1000 bed days.

Patient falls carry additional risk of injury to the patient, but also an increase in associated costs to the facility. However, many of these falls can be prevented.

Leading health organisations recommend: “Make the environment safe by ensuring that the bed is at the appropriate height for the patient and the wheels and/or brakes are locked when the bed is not being moved”. *But it’s easy to forget to apply brakes when you’re under pressure. Automatic braking prevents falls due to unlocked brakes.

*Preventing Falls and Harm From Falls in Older People. Best Practice Guidelines for
Australian Hospitals, 2009

Design features...

Automatically applied brakes (reduce cost of falls due to brakes being unlocked) – brakes apply after 30 seconds of nonmovement (programmable)

3 brake positions (directional lock, total brake & free (swivel) can be applied using the pedals or the handset (whatever is easier and more intuitive for the user)

Bed can be easily steered from both directions with flexible directional lock
• Steer from the head end
• Steer from the foot end


In the event of a flat battery, castors can be controlled manually (individually) with pedal operation of all functions – Brake/Steer/Free

Integrated controls with handset or bed control panel

Visual indicator light to show status of brake

Extra low bed height achievable

Design freedom – no need to accommodate traditional transfer bar

Low current draw ensures long battery life Watch the demo video:
www.fallshaw.com.au/castors/specialised/electric_brake_castors

Standards compliance
Designed to comply with:
• IEC60601 3rd edition including IEC 60601-2-52 Particular Requirments for the Basic Safety
and essential Performance of Medical Beds

Note: all Trinity castors pass the “threshhold test” (even the 100mm (4”) size)

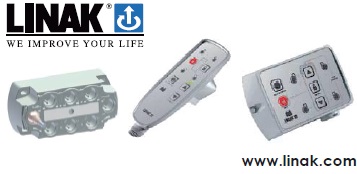

Trinity EBC is compatible with LINAK controllers and handsets. Other controllers are also possible. Fallshaw supplies the castors (incorporating motion sensing & servo control units).

tors castors castors

Trinity castors come with manually operated pedals and Trinityebc Castors can also be electronically operated

Fixed brake position
The brake pedal does not swivel with the castor so it is always within easy reach

3-in-1 brake

The advanced braking mechanism provides 3 brake functions with soft touch actuation: Total brake, Directional lock and swivel (free)

Ultra-short swept radius

At 78mm (100mm version), the swept radius is ultra small and eliminates trip hazards

Inovative Patended Design

USA Patent US8202297B2

European Patent 2164715

Australian Patent 2008258348

Standards compliance

Designed to comply with:

IEC60601 3rd edition including IEC 60601-2-52
Particular Requirements for the Basic Safety and essential Performance of Medical Beds



‘Natural Directional Lock’ (NDL) castors make steering easy
Fallshaw ‘Natural Directional Lock’ (NDL castors are designed specifically to resolve hard-to-steer trolleys and eradicate confusing directional lock systems.
The NDL castor intuitively locks the castor from swivelling when travelling in a forward motion. A simple motion (reversing by a few millimetres – something that people do intuitively) then releases the swivel lock allowing the trolley to be fully manoeuvered in any direction.

There is no other similar product on the market. The castor design is patented (Patent number: AU2005237657).

When the wheel is travelling forward, the rocker moves the tooth up into the slot.

When the wheel is travelling backward, the rocker moves the tooth down out of the slot.

From a user-perspective none of this matters! The Natural Directional Lock castor is intuitive to use - customers ‘feel’ how to use it without being taught. They naturally figure it out within about 30 seconds. And from then on the trolley is ‘magically’ easy to steer and push...

NDL Configurations

1. Mount two NDL castors at one end of the trolley and two regular swivel castors on the other end

2. Mount two NDL castors on directional opposites for bi-directional performance 3. Mount one springloaded NDL castor as a fifth wheel with swivel castors on all four corners of the trolley
