Access Equipment

Work Platforms

Product code: TSWPP
Width: 1200mm
Length: 1200mm
Height: 2200mm (including safety screen)
Safe working load: 250Kg (designed for two people)
Features:

Toe boards on all sides

Skid resistant floor plates

Inward opening self closing door

Internal hand rail

Full length fork sleeves

Safety chains

Two harness anchor points

Fully welded

Construction: 40mm SHS, painted 'safety yellow' finish
Description: Fully welded work platform

Product code: TSWPF
Width: 1200mm
Length: 1200mm
Height: 2200mm (including safety screen)
Safe working load: 250Kg (designed for two people)
Features:

Toe boards on all sides

Skid resistant floor plates

Inward opening self closing door

Internal hand rail

Full length fork sleeves

Safety chains

Construction: 40mm SHS, painted 'safety yellow' finish
Description: Flat packed work platform (not suitable for use with harness)

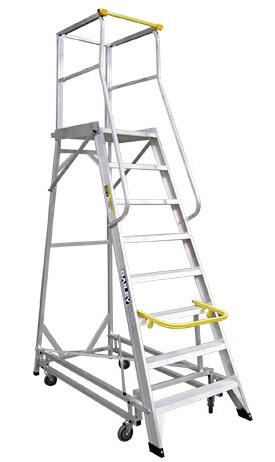

Deluxe Order Picker Ladders - Deluxe Order Picker (Walk Thru)

Bailey – Ladderweld; Deluxe Order Picking (DOP) ladders are designed for safe, easy and efficient use around the warehouse, workplace or for access/maintenance.  Incorporating a large stable work platform and a strong welded frame construction. A host of upgraded features make the DOP simple, efficient and highly practical for many applications.

Industrial Duty rated for use on commercial sites and warehouses
170Kg Load rating
Ideal for high frequency stock picking applications
Extra strong, aluminium construction with XHD stiles and 100mm wide treads for superior durability
Fully welded back section
Manually operated braking system with high-vis powder coated activation arm to prevent unauthorized access
New 125mm wheels—improved portability and ‘easy glide’ action
New double-steel bracing on bottom tread and additional side bracing provides additional protection from impact damage
900mm square handrail on three sides to meet Work Cover requirements
Safety gate fitted as standard
100mm kick plate on three sides
590mm x 710mm platform for ladders up to 2400mm high
590mm x 910mm platform for ladders over 2400mm high
Made to AS/ NZS 1892.1
Australian made
Supplied in flat pack assembly with detailed assembly instructions

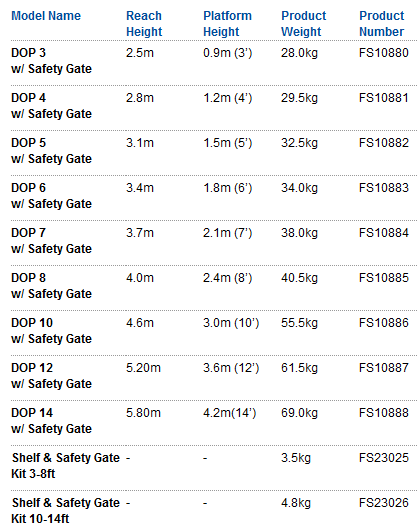

Model Name

Reach
Height

Platform
Height

Product Weight

Product Number

DOP 3
w/ Safety Gate

2800mm

831mm

28.0kg

FS13507

DOP 4
w/ Safety Gate

3100mm

1107mm

29.5kg

FS13508

DOP 5
w/ Safety Gate

3400mm

1381mm

32.5kg

FS13509

DOP 6
w/ Safety Gate

3700mm

1659mm

34.0kg

FS13510

DOP 7
w/ Safety Gate

3900mm

1935mm

38.0kg

FS13511

DOP 8
w/ Safety Gate

4200mm

2211mm

40.5kg

FS13512

DOP 10
w/ Safety Gate

4800mm

2764mm

55.5kg

FS13513

DOP 12
w/ Safety Gate

5300mm

3314mm

61.5kg

FS13514

DOP 14
w/ Safety Gate

5900mm

3863mm

69.0kg

FS13515* (150kg)

Shelf & Safety Gate
Kit 3-8ft



3.5kg

101858

Shelf & Safety Gate
Kit 10-14ft



4.8kg

101859

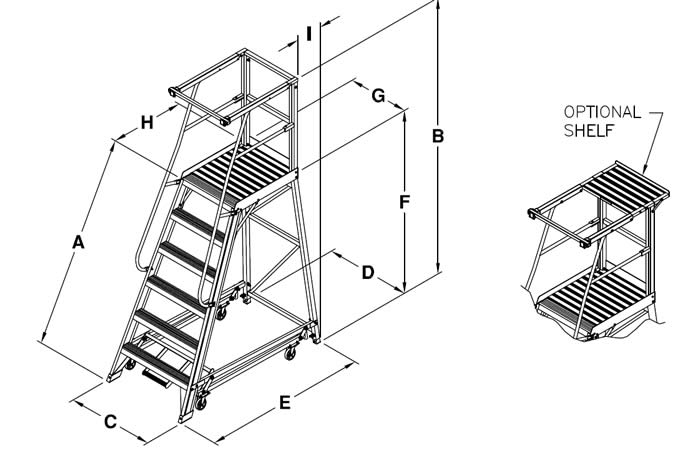

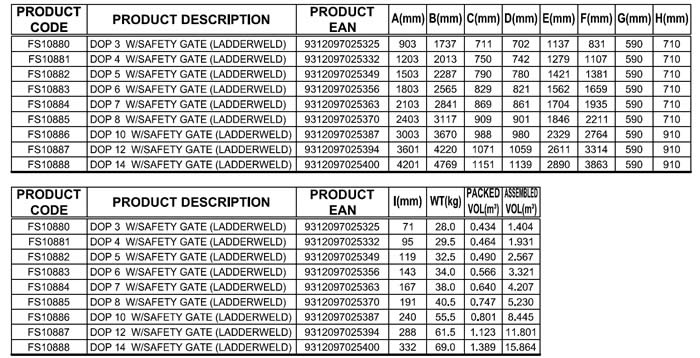

Product weights and measures

Deluxe order picker assembly instructions

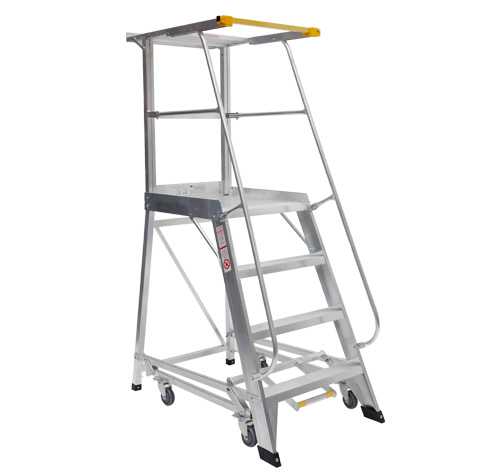

Bailey – Ladderweld; Deluxe Order Picking (DOP) Walk-Thru ladders are designed for safe, easy and efficient use around the warehouse, workplace (vehicle access/cleaning) and general access/maintenance.  Incorporating a large stable work platform with 'walk-thru' capability, the strong welded frame construction and a host of upgraded features, the DOP Walk Thru is simple, efficient and highly practical for many applications. "Walk Thru" design suitabel for high frequency stock picking and access to mezzanine floors, truck access and warehousing.

Industrial Duty rated for use on commercial sites and warehouses
170Kg Load rating
Extra strong, aluminium construction with XHD stiles and 100mm wide treads for superior durability
Fully welded back section
Manually operated braking system with high-vis powder coated activation arm to prevent unauthorized access
New 125mm wheels—improved portability and ‘easy glide’ action
New double-steel bracing on bottom tread and additional side bracing provides additional protection from impact damage
900mm square handrail on three sides to meet Work Cover requirements
Safety gate fitted as standard
100mm kick plate on three sides
590mm x 810mm platform for ladders up to 2400mm high (extends 100mm to allow walk thru access)
590mm x 1110mm platform for ladders over 2400mm high (extends 100mm to allow walk thru access)
Made to AS/ NZS 1892.1
Australian made
Supplied in flat pack assembly with detailed assembly instructions
170Kg on all models except the FS13522 DOP10  - rated at 150Kg

Model Name

Reach
Height

Platform
Height

Product Weight

Product Number

DOP 3
Walk Thru

2800mm

831mm

28.0kg

FS13516

DOP 4
Walk Thru

3100mm

1107mm

29.5kg

FS13517

DOP 5
Walk Thru

3400mm

1381mm

32.5kg

FS13518

DOP 6
Walk Thru

3700mm

1659mm

34.0kg

FS13519

DOP 7
Walk Thru

3900mm

1935mm

38.0kg

FS13520

DOP 8
Walk Thru

4200mm

2211mm

40.5kg

FS13521

DOP 10
Walk Thru

4800mm

2764mm

55.5kg

FS13522

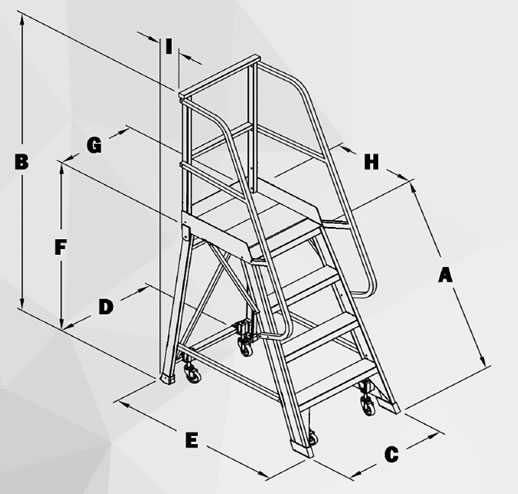

Product weights and measures

Deluxe Order Picker assembly instructions

Deluxe Order Picker Walk Thru Assembly instructions
